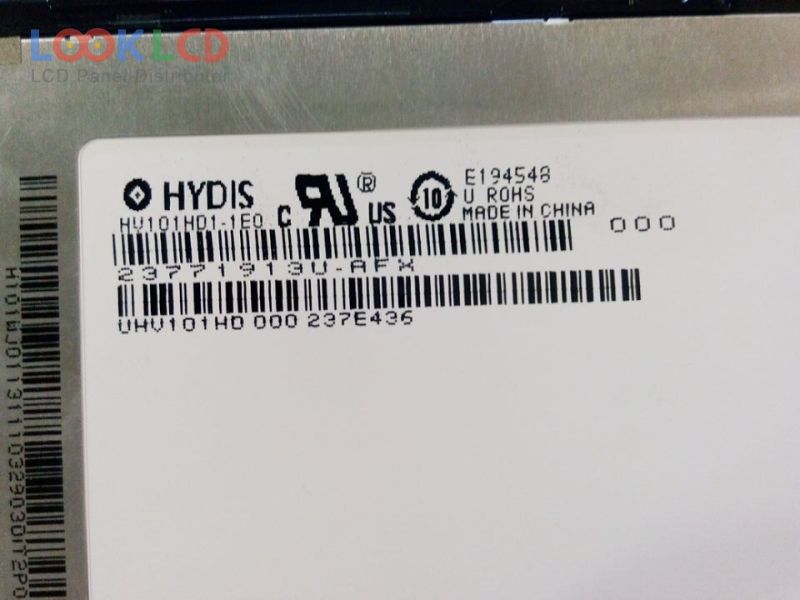

| Artikelnummer | HV101HD1-1E0 |
| varumärke | HYDIS |
| Storlek | 10.1 |
| Ansökan | PAD |
| Upplösning | 1366×768 |
| Sammansättning | LCM |
| Ljusstyrka | |
| CR | 800:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | HYDIS |
| panelmodell | HV101HD1-1E0 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 10.1 inch |
| upplösning | 1366(RGB)×768 , WXGA |
| visningsläge | HFFS, Normally Black, Transmissive |
| aktivt område | 223.341×125.568 mm |
| yta | |
| ljusstyrka | |
| Kontrastförhållande | 800:1 (Typ.) |
| visa färger | 16.7M (8-bit), CIE193150% |
| respons tid | 30 (Typ.)(Tr+Td) |
| betraktningsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS (1 ch, 8-bit), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | PAD |
