| Artikelnummer | LTL101DL03-T01 |
| varumärke | Samsung |
| Storlek | 10.1 |
| Ansökan | PAD |
| Upplösning | 2560×1600 |
| Sammansättning | LCM |
| Ljusstyrka | 370 |
| CR | 800:1 |
| Färger | 16.2M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | eDP |
| panelmärke | SAMSUNG |
| panelmodell | LTL101DL03-T01 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 10.1 inch |
| upplösning | 2560RG(BW)×1600 , WQXGA |
| visningsläge | PLS, Normally Black, Transmissive |
| aktivt område | 216.576×135.36 mm |
| skissera | 232.22×156.92×5.2 mm |
| yta | Glare (Haze 0%), Hard coating (2H) |
| ljusstyrka | 370 cd/m² (Typ.) |
| Kontrastförhållande | 800:1 (Typ.) |
| visa färger | 16.2M (6-bit + FRC) |
| respons tid | 16 (Typ.)(Tr+Td) |
| betraktningsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 7S6PWLEDEmbedded (LED Driver) |

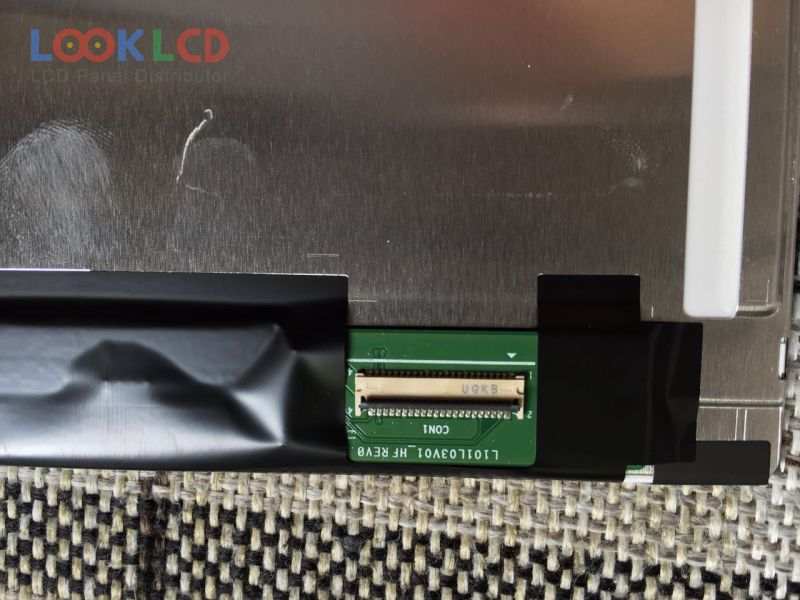

| signalgränssnitt | eDP (4 Lanes), 45 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | PAD |
