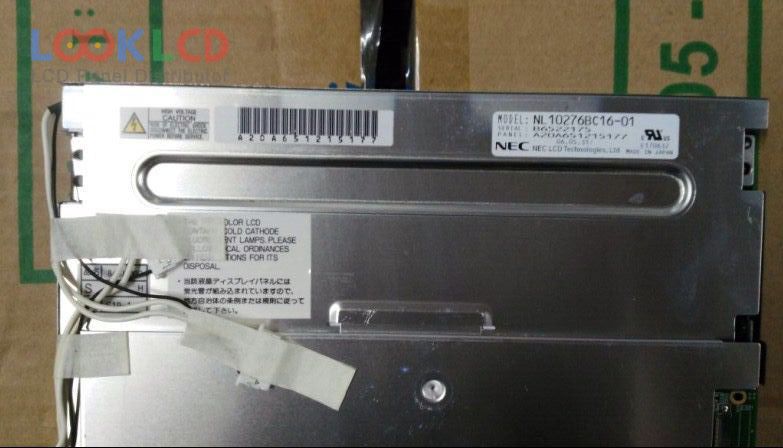

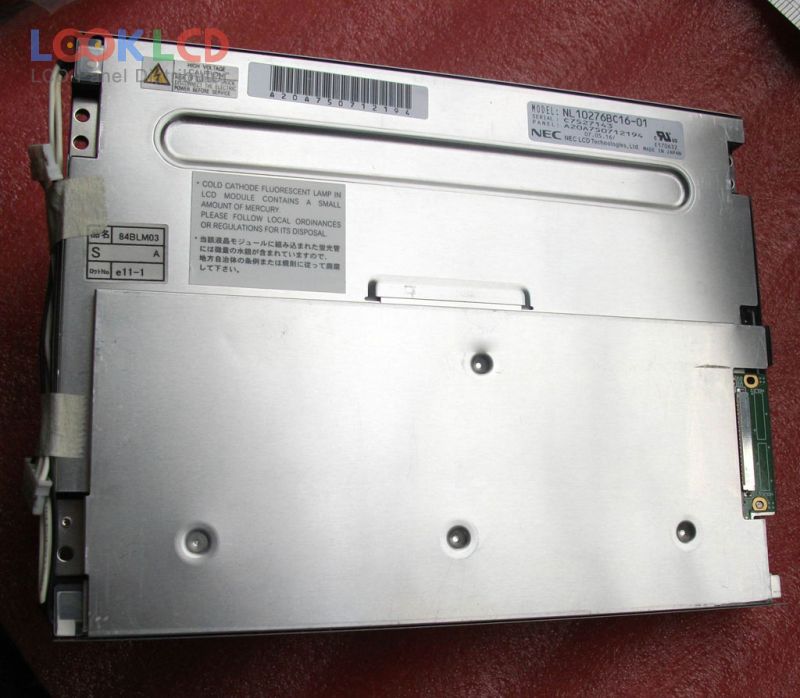

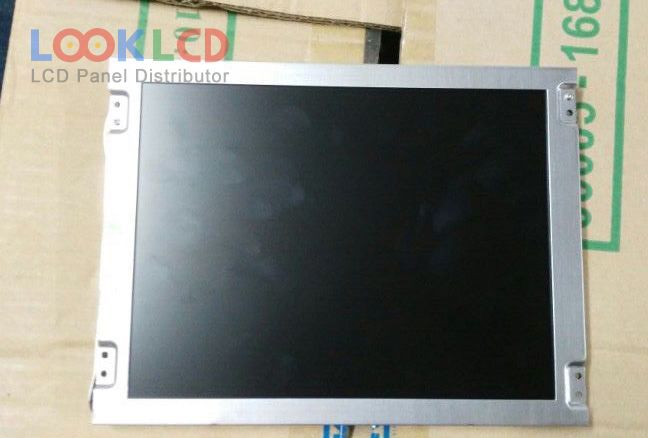

| Artikelnummer | NL10276BC16-01 |
| varumärke | NLT |
| Storlek | 8.4 |
| Ansökan | IA |
| Upplösning | 1024×768 |
| Sammansättning | LCM |
| Ljusstyrka | 400 |
| CR | 400:1 |
| Färger | 262K/16.7M |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | NEC |
| panelmodell | NL10276BC16-01 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 8.4 inch |
| upplösning | 1024(RGB)×768 , XGA |
| visningsläge | UA-SFT, Normally Black, Transmissive |
| aktivt område | 170.496×127.872 mm |
| skissera | 200×152 mm |
| yta | Antiglare, Hard coating (3H) |
| ljusstyrka | 400 cd/m² (Typ.) |
| Kontrastförhållande | 400:1 (Typ.) |
| visa färger | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| respons tid | 13/12 (Typ.)(Tr/Td) |
| betraktningsvinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 4 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6/8-bit), 20 pins |
| inspänning | 3.3V (Typ.) |
