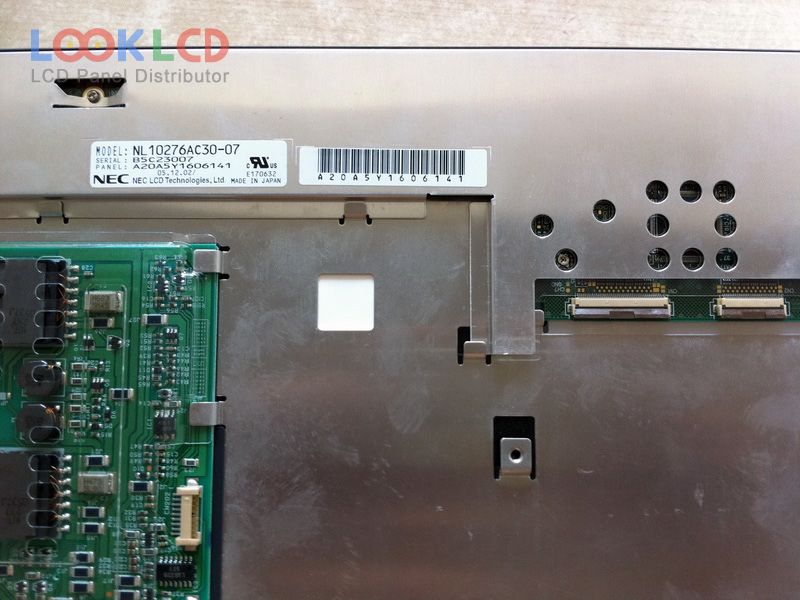

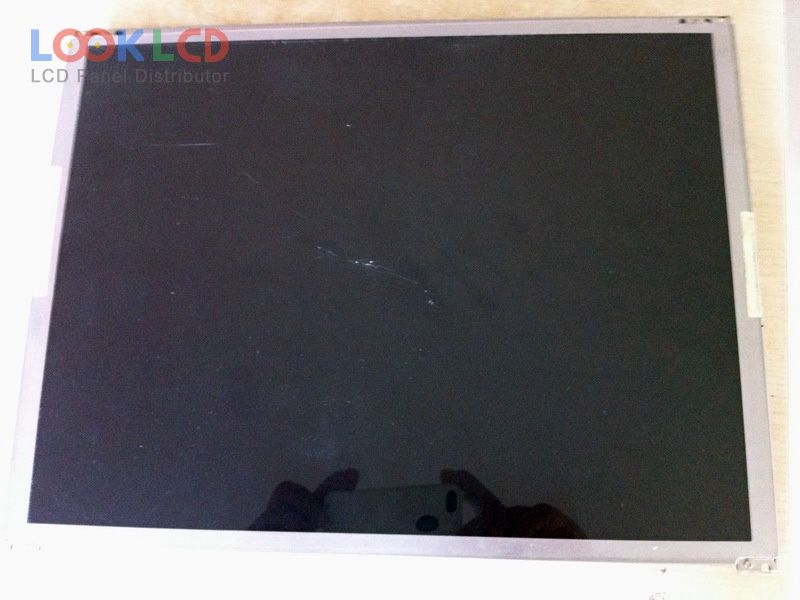

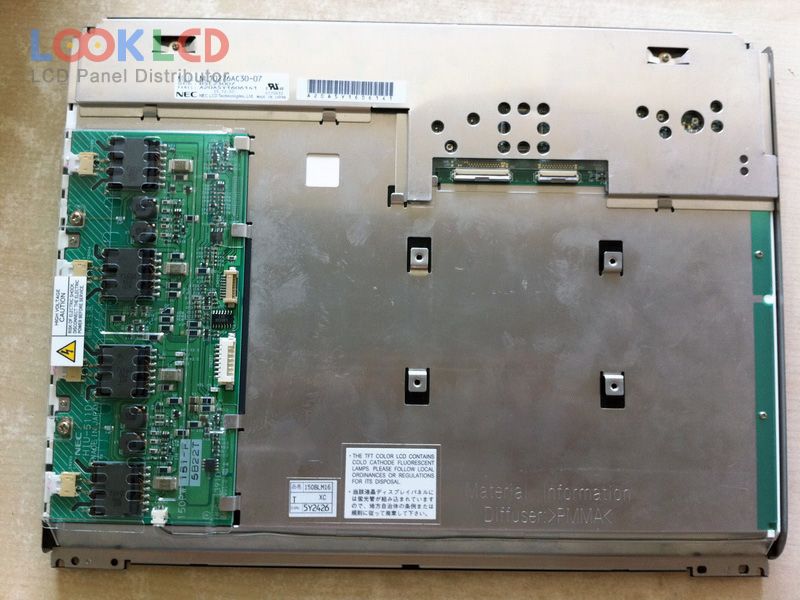

| Artikelnummer | NL10276AC30-07 |
| varumärke | NLT |
| Storlek | 15.0 |
| Ansökan | DMPC |
| Upplösning | 1024×768 |
| Sammansättning | LCM |
| Ljusstyrka | 400 |
| CR | 300:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | TTL |
| panelmärke | NEC |
| panelmodell | NL10276AC30-07 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.0 inch |
| upplösning | 1024(RGB)×768 , XGA |
| visningsläge | Normally Black, Transmissive |
| aktivt område | 304.128×228.096 mm |
| skissera | 330×256×30 mm |
| yta | Hard coating (2H) |
| ljusstyrka | 400 cd/m² (Typ.) |
| Kontrastförhållande | 300:1 (Typ.) |
| visa färger | 16.7M (6-bit + Hi-FRC), CIE193160% |
| respons tid | 10/10 (Typ.)(Tr/Td) |
| betraktningsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 8 pcsCCFLEmbedded (Inverter) |
| signalgränssnitt | TTL (2 ch, 8-bit), 75 pins |
| inspänning | 5.0V (Typ.) |
| Ansökan | DMPC |
