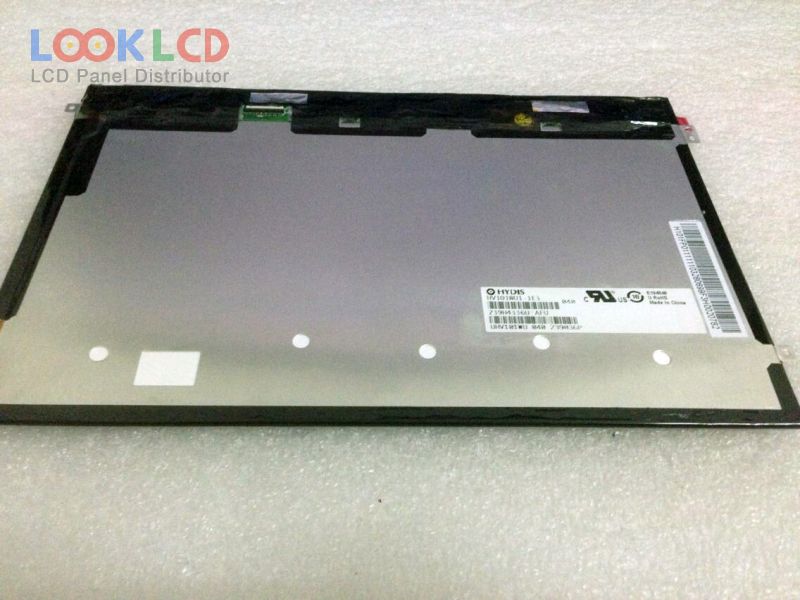

| Artikelnummer | HV101WU1-1E3 |
| varumärke | HYDIS |
| Storlek | 10.1 |
| Ansökan | PAD |
| Upplösning | 1920×1200 |
| Sammansättning | LCM |
| Ljusstyrka | 700 |
| CR | 750:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS/MIPI |
| panelmärke | HYDIS |
| panelmodell | HV101WU1-1E3 1 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 10.1 inch |
| upplösning | 1920(RGB)×1200 , WUXGA |
| visningsläge | AFFS, Normally Black, Transmissive |
| aktivt område | 216.576×135.36 mm |
| skissera | 229×153×4.8 mm |
| yta | |
| ljusstyrka | 700 cd/m² (Typ.) |
| Kontrastförhållande | 750:1 (Typ.) |
| visa färger | 16.7M (8-bit) |
| respons tid | 30 (Typ.)(Tr+Td) |
| betraktningsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS/MIPI, 45 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | PAD |
