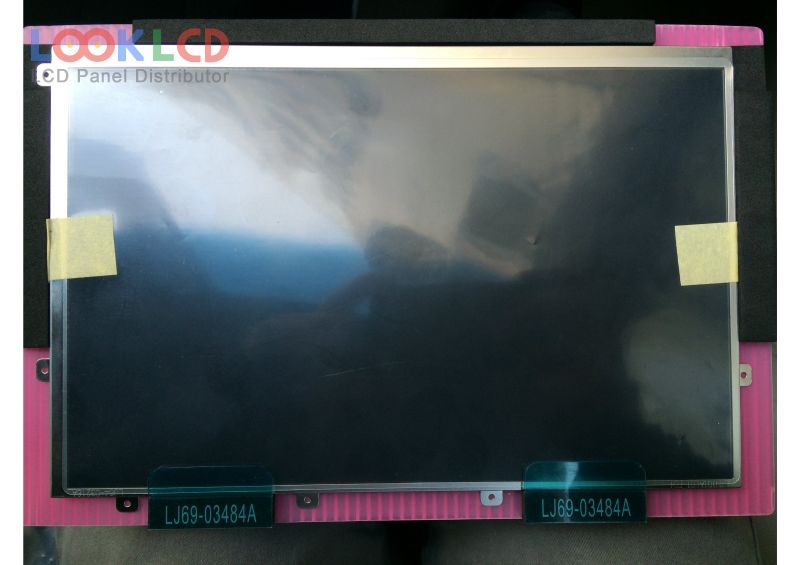

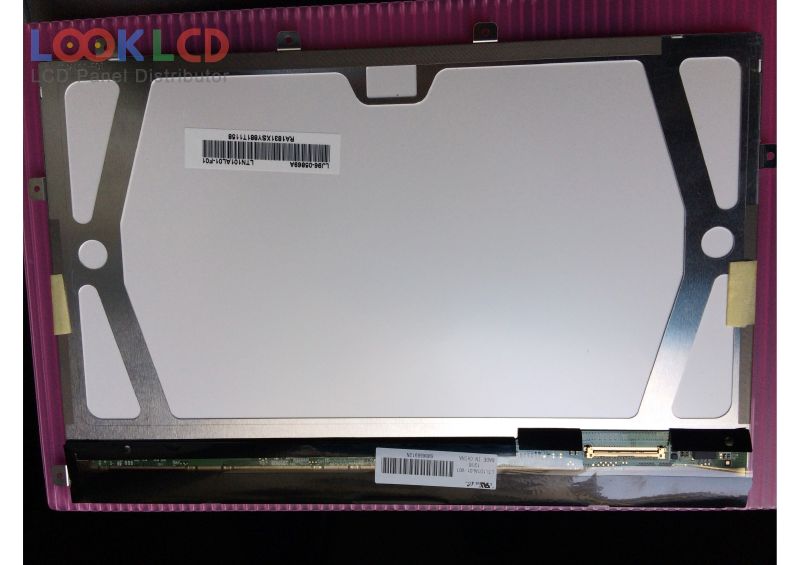

| Artikelnummer | LTN101AL01-F01 |
| varumärke | Samsung |
| Storlek | 10.1 |
| Ansökan | PAD |
| Upplösning | 1280×800 |
| Sammansättning | LCM |
| Ljusstyrka | 400 |
| CR | 500:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | SAMSUNG |
| panelmodell | LTN101AL01-F01 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 10.1 inch |
| upplösning | 1280(RGB)×800 , WXGA |
| visningsläge | PLS, Normally Black, Transmissive |
| aktivt område | 216.96×135.6 mm |
| skissera | 235×149.87×5.4 mm |
| yta | Glare (Haze 0%) |
| ljusstyrka | 400 cd/m² (Typ.) |
| Kontrastförhållande | 500:1 (Typ.) |
| visa färger | 16.7M (8-bit), CIE193145% |
| respons tid | 30 (Typ.)(Tr+Td) |
| betraktningsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 6S6PWLEDWithout Driver |
| signalgränssnitt | LVDS (1 ch, 8-bit), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | PAD |
