| Artikelnummer | NV133FHM-N52 |
| varumärke | BOE |
| Storlek | 13.3 |
| Ansökan | NBPC |
| Upplösning | 1920×1080 |
| Sammansättning | LCM |
| Ljusstyrka | 300 |
| CR | 800:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | eDP |
| panelmärke | BOE |
| panelmodell | NV133FHM-N52 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 13.3 inch |
| upplösning | 1920(RGB)×1080 , FHD |
| visningsläge | ADS, Normally Black, Transmissive |
| aktivt område | 293.76×165.24 mm |
| skissera | 300.26×188.25×2.4 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| yta | |
| ljusstyrka | 300 cd/m² (Typ.) |
| Kontrastförhållande | 800:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193172% |
| respons tid | 30 (Typ.)(Tr+Td) |
| betraktningsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 9S4PWLEDEmbedded (LED Driver) |

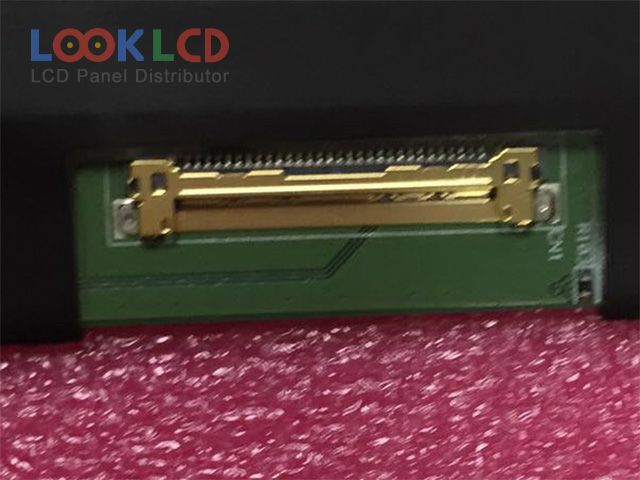

| signalgränssnitt | eDP (2 Lanes), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
