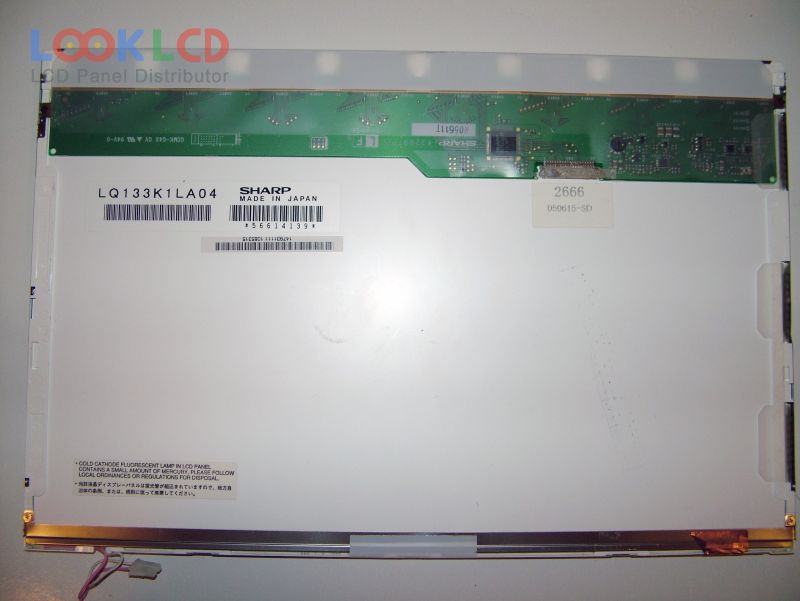

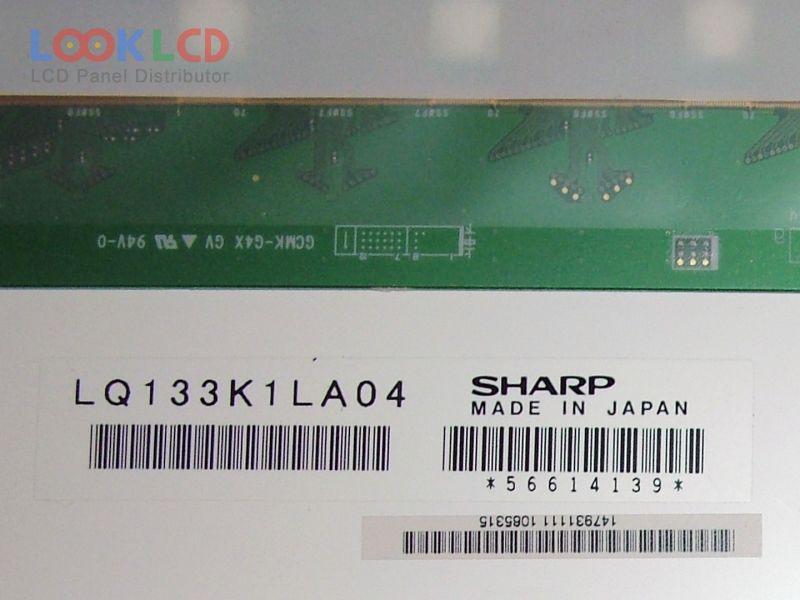

| Artikelnummer | LQ133K1LA04 |
| varumärke | SHARP |
| Storlek | 13.3 |
| Ansökan | NBPC |
| Upplösning | 1280×800 |
| Sammansättning | LCM |
| Ljusstyrka | 300 |
| CR | 300:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | SHARP |
| panelmodell | LQ133K1LA04 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 13.3 inch |
| upplösning | 1280(RGB)×800 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 286.08×178.8 mm |
| skissera | 299×195×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Glare (Haze 0%), Hard coating (2H), Antireflection |
| ljusstyrka | 300 cd/m² (Typ.) |
| Kontrastförhållande | 300:1 (Min.) |
| visa färger | 262K (6-bit) |
| respons tid | 30 (Typ.)(Tr+Td) |
| betraktningsvinkel | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 1 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6-bit), 20 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
