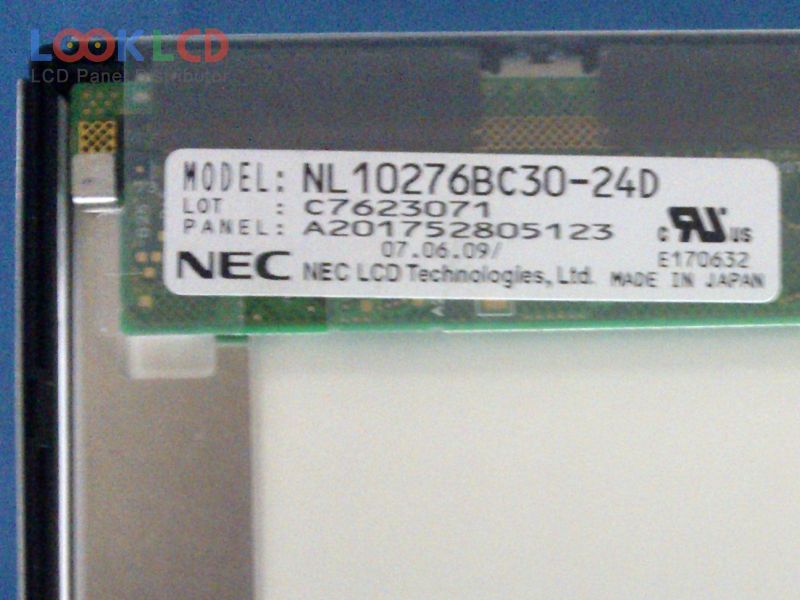

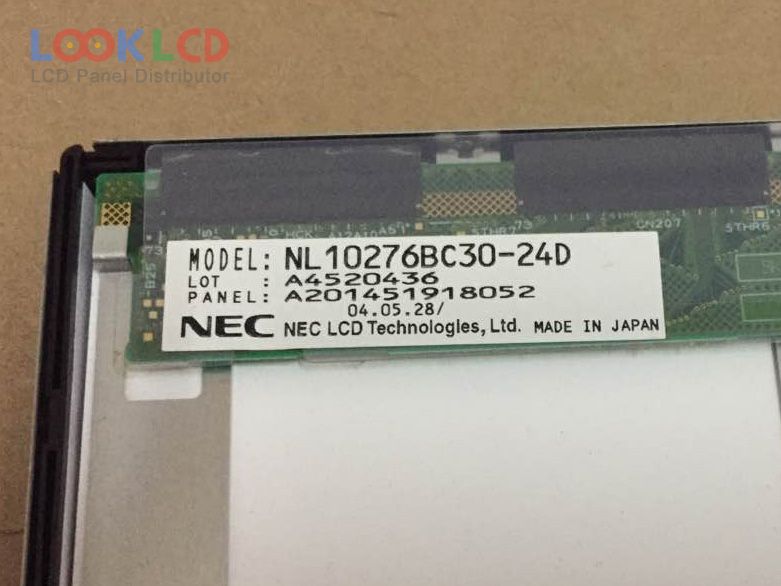

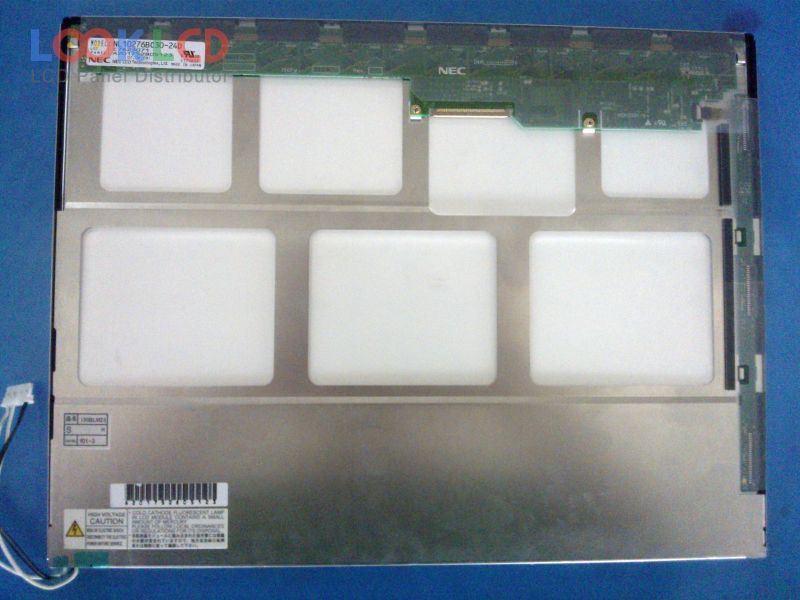

| Artikelnummer | NL10276BC30-24D |
| varumärke | NLT |
| Storlek | 15.0 |
| Ansökan | NBPC |
| Upplösning | 1024×768 |
| Sammansättning | LCM |
| Ljusstyrka | 320 |
| CR | 400:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | NEC |
| panelmodell | NL10276BC30-24D |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.0 inch |
| upplösning | 1024(RGB)×768 , XGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| skissera | 317.3×242.2×10 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Clear, Hard coating (2H), Antireflection |
| ljusstyrka | 320 cd/m² (Typ.) |
| Kontrastförhållande | 400:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193172% |
| respons tid | TBD |
| betraktningsvinkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 2 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6-bit), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
