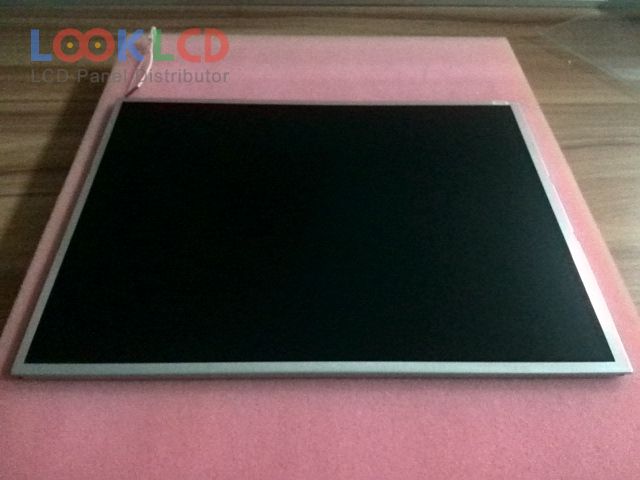

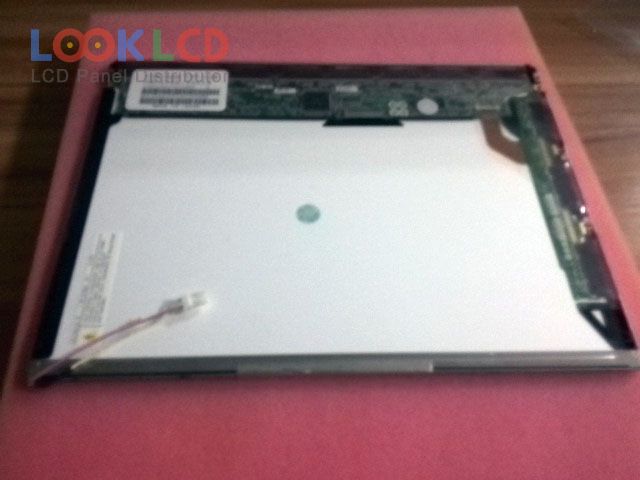

| Artikelnummer | TM121XG-02L10 |
| varumärke | SANYO |
| Storlek | 12.1 |
| Ansökan | NBPC |
| Upplösning | 1024×768 |
| Sammansättning | LCM |
| Ljusstyrka | 140 |
| CR | 300:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |

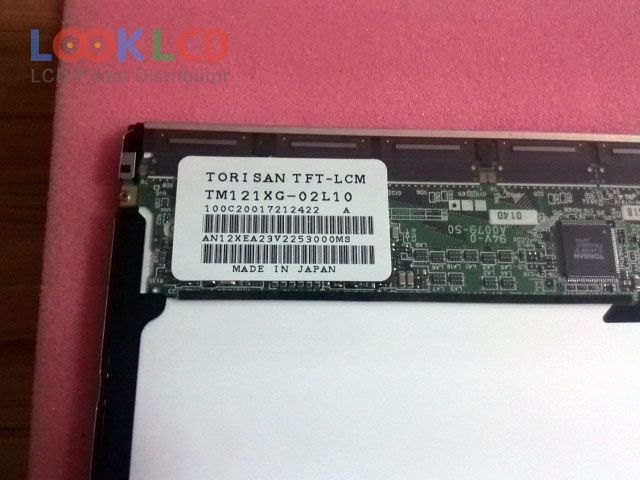

| panelmärke | TORISAN |
| panelmodell | TM121XG-02L10 4 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 12.1 inch |
| upplösning | 1024(RGB)×768 , XGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 245.76×184.32 mm |
| skissera | 261×199×5.3 mm |
| yta | Antiglare |
| ljusstyrka | 140 cd/m² (Typ.) |
| Kontrastförhållande | 300:1 (Typ.) |
| visa färger | 262K (6-bit) |
| respons tid | 32/13 (Typ.)(Tr/Td) |
| betraktningsvinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 1 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6-bit), 20 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
