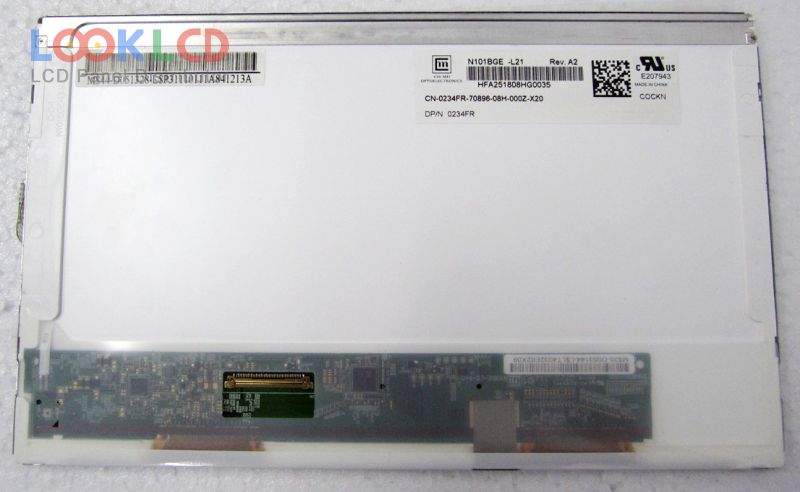

| Artikelnummer | N101BGE-L21 |
| varumärke | Innolux |
| Storlek | 10.1 |
| Ansökan | NBPC |
| Upplösning | 1366×768 |
| Sammansättning | LCM |
| Ljusstyrka | 200 |
| CR | 500:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | CHIMEI INNOLUX |
| panelmodell | N101BGE-L21 3 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 10.1 inch |
| upplösning | 1366(RGB)×768 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 222.52×125.11 mm |
| skissera | 235×143×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Glare (Haze 0%), Hard coating (3H) |
| ljusstyrka | 200 cd/m² (Typ.) |
| Kontrastförhållande | 500:1 (Typ.) |
| visa färger | 262K (6-bit) |
| respons tid | 3/7 (Typ.)(Tr/Td) |
| betraktningsvinkel | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 10S2PWLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS (1 ch, 6-bit), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
| EJ101IA-02A | Innolux | 10.1 | 1280×800 |
| HE101NA-02C | Innolux | 10.1 | 1280×800 |
| HJ101NA-02A | Innolux | 10.1 | 1280×800 |
| HV101WU1-1E3 | HYDIS | 10.1 | 1920×1200 |
| M101GWN9 R0 | IVO | 10.1 | 1024×600 |
| N101BCG-GK1 | Innolux | 10.1 | 1366×768 |
| N101BCG-L21 | Innolux | 10.1 | 1366×768 |
| N101BGE-L21 | Innolux | 10.1 | 1366×768 |
| N101BGE-L31 | Innolux | 10.1 | 1366×768 |
| VVX10T022N00 | Panasonic | 10.1 | 2560×1600 |
| AA121SJ23 | Mitsubishi | 12.1 | 800×600 |
| B101EW02 V0 | AUO | 10.1 | 1280×720 |
| B125XW01 V0 | AUO | 12.5 | 1366×768 |
| B141EW05 V3 | AUO | 14.1 | 1280×800 |
| LP141WX5-TPP1 | LG Display | 14.1 | 1280×800 |
| LP171WP4-TLP1 | LG Display | 17.1 | 1440×900 |
| LTD133EV2F | TOSHIBA | 13.3 | 1280×800 |
| LTN141X7-L06 | Samsung | 14.1 | 1024×768 |
| LTN173KT01-W01 | Samsung | 17.3 | 1600×900 |
| N140BGN-E42 | Innolux | 14.0 | 1366×768 |
