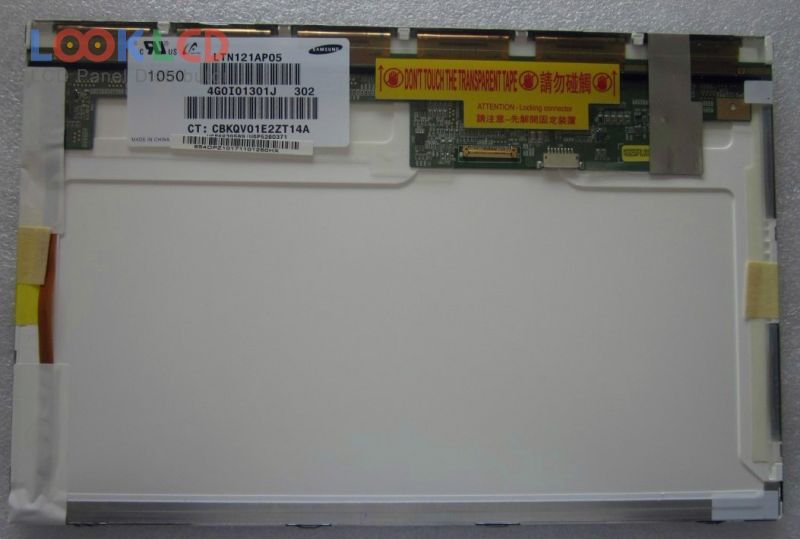

| Artikelnummer | LTN121AP05-302 |
| varumärke | Samsung |
| Storlek | 12.1 |
| Ansökan | PAD |
| Upplösning | 1280×800 |
| Sammansättning | LCM |
| Ljusstyrka | 200 |
| CR | 500:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | eDP |
| panelmärke | SAMSUNG |
| panelmodell | LTN121AP05-302 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 12.1 inch |
| upplösning | 1280(RGB)×800 , WXGA |
| visningsläge | PVA, Normally Black, Transmissive |
| aktivt område | 261.12×163.2 mm |
| skissera | 276.8×180×6.8 mm |
| yta | Antiglare (Haze 25%), Hard coating (3H) |
| ljusstyrka | 200 cd/m² (Typ.) |
| Kontrastförhållande | 500:1 (Typ.) |
| visa färger | 262K (6-bit) |
| respons tid | 25 (Typ.)(Tr+Td) |
| betraktningsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | eDP (1 Lane), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | PAD |
