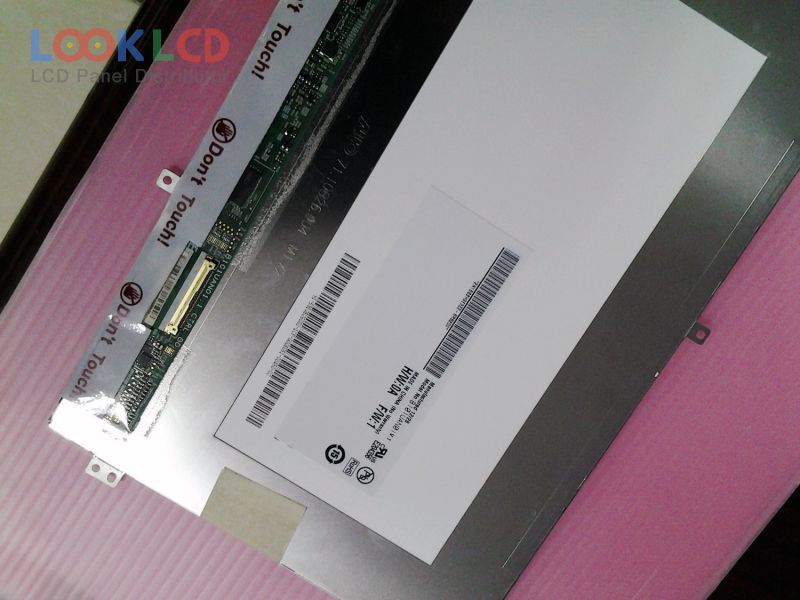

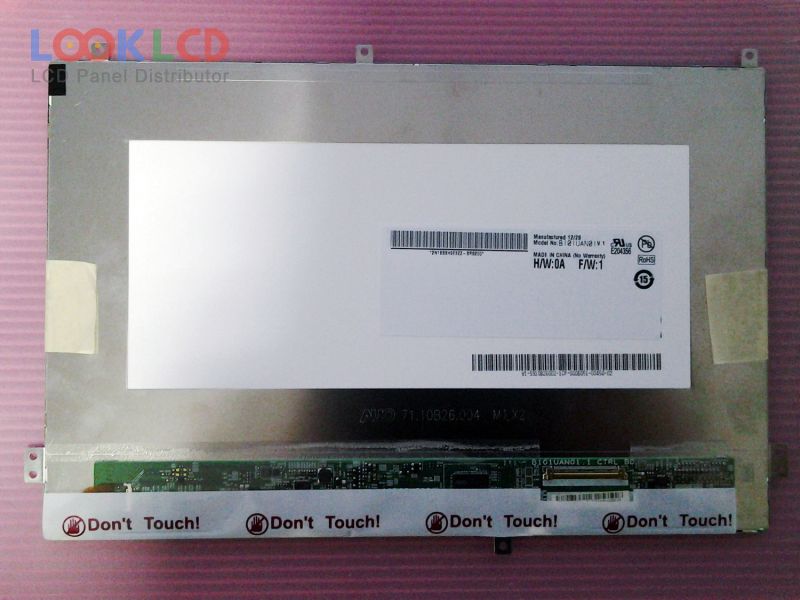

| Artikelnummer | B101UAN01.1 |
| varumärke | AUO |
| Storlek | 10.1 |
| Ansökan | PAD |
| Upplösning | 1920×1200 |
| Sammansättning | LCM |
| Ljusstyrka | 400 |
| CR | 800:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | AU Optronics |
| panelmodell | B101UAN01.1 1 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 10.1 inch |
| upplösning | 1920(RGB)×1200 , WUXGA |
| visningsläge | AHVA, Normally Black, Transmissive |
| aktivt område | 216.81×135.5 mm |
| skissera | 228.6×149.2×4.65 mm |
| yta | Glare (Haze 0%), Hard coating (3H) |
| ljusstyrka | 400 cd/m² (Typ.) |
| Kontrastförhållande | 800:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193152% |
| respons tid | 25 (Typ.)(Tr+Td) |
| betraktningsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 5 stringsWLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS (2 ch, 6-bit), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | PAD |
