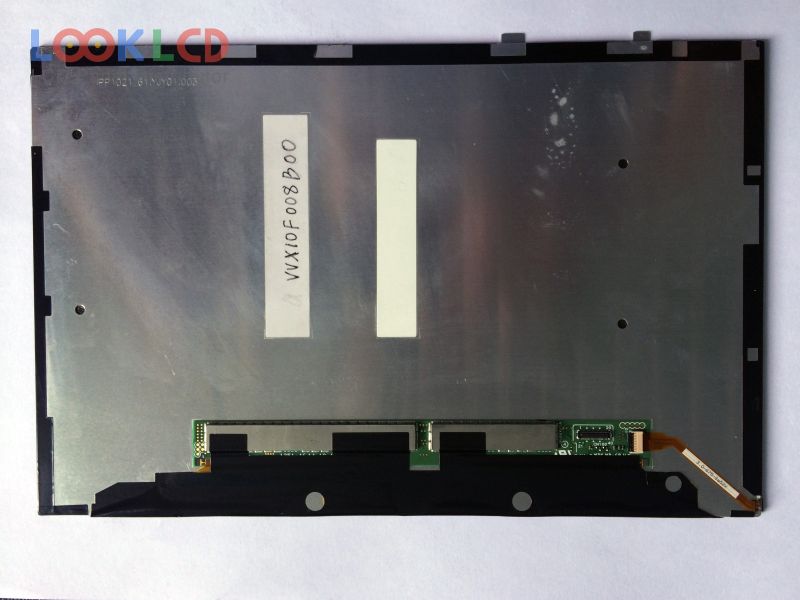

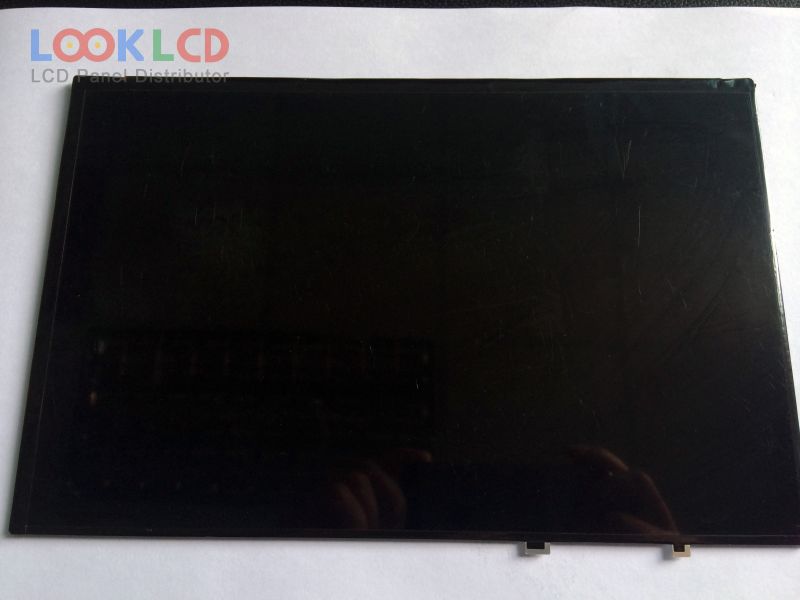

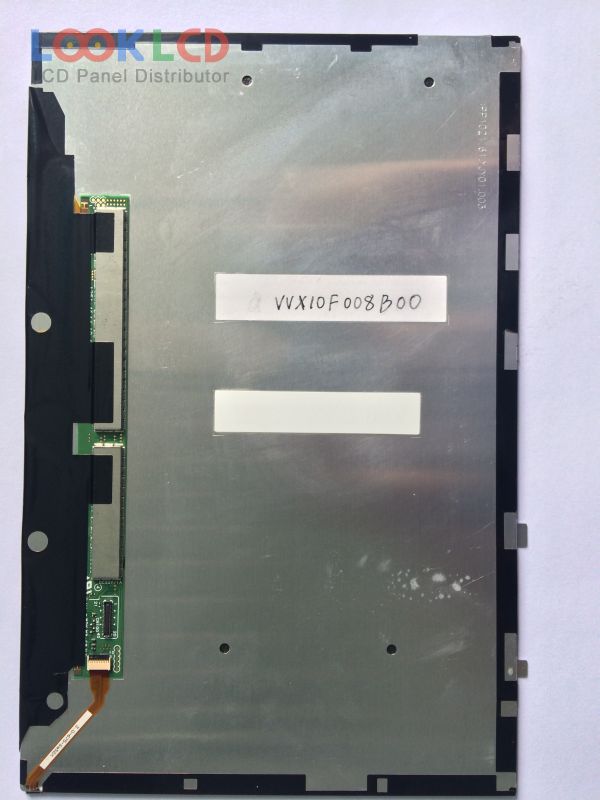

| Artikelnummer | VVX10F008B00 |
| varumärke | Panasonic |
| Storlek | 10.1 |
| Ansökan | PAD |
| Upplösning | 1920×1200 |
| Sammansättning | LCM |
| Ljusstyrka | 385 |
| CR | 900:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | MIPI |
| panelmärke | Panasonic |
| panelmodell | VVX10F008B00 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 10.1 inch |
| upplösning | 1920(RGB)×1200 , WUXGA |
| visningsläge | IPS, Normally Black, Transmissive |
| aktivt område | 217.44×135.9 mm |
| skissera | 228.96×148.14×4.29 mm |
| yta | Hard coating |
| ljusstyrka | 385 cd/m² (Typ.) |
| Kontrastförhållande | 900:1 (Typ.) |
| visa färger | 16.7M (8-bit), CIE193174% |
| respons tid | 30 (Max.)(Tr+Td) |
| betraktningsvinkel | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 8S6PWLEDWithout Driver |
| signalgränssnitt | MIPI (4 data lanes), 40 pins |
| inspänning | 3.7V (Typ.) |
| Ansökan | PAD |
