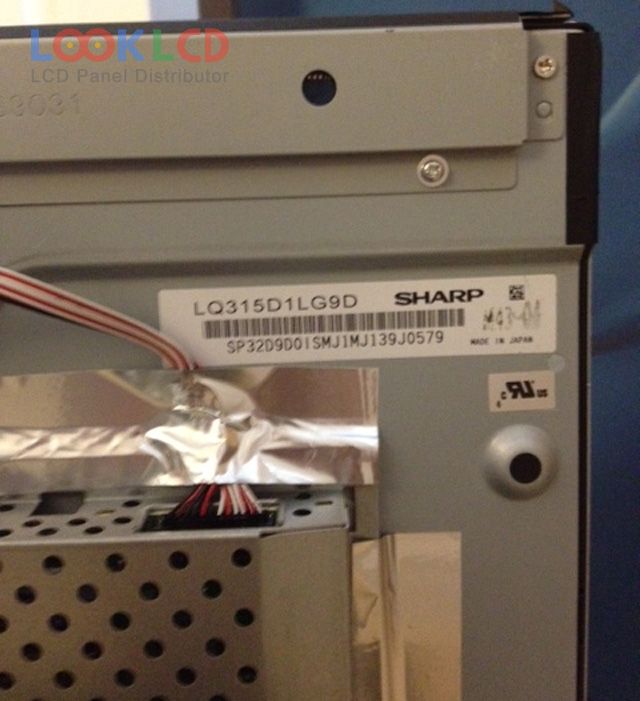

| Artikelnummer | LQ315D1LG9D |
| varumärke | SHARP |
| Storlek | 31.5 |
| Ansökan | DMPC |
| Upplösning | 3840×2160 |
| Sammansättning | LCM |
| Ljusstyrka | 350 |
| CR | 1000:1 |
| Färger | 1.07B |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | SHARP |
| panelmodell | LQ315D1LG9D |
| paneltyp | IGZO TFT-LCD , LCM |
| panelstorlek | 31.5 inch |
| upplösning | 3840(RGB)×2160 , UHD |
| visningsläge | New Mode2, Normally Black, Transmissive |
| aktivt område | 697.92×392.58 mm |
| yta | Antiglare, Hard coating (3H), Antireflection |
| ljusstyrka | 350 cd/m² (Typ.) |
| Kontrastförhållande | 1000:1 (Typ.) |
| visa färger | 1.07B (10-bit), Adobe |
| respons tid | 8 (Typ.)(G to G) |
| betraktningsvinkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS (8 ch, 10-bit) |
| inspänning | 12.0V (Typ.) |
| Ansökan | DMPC |
