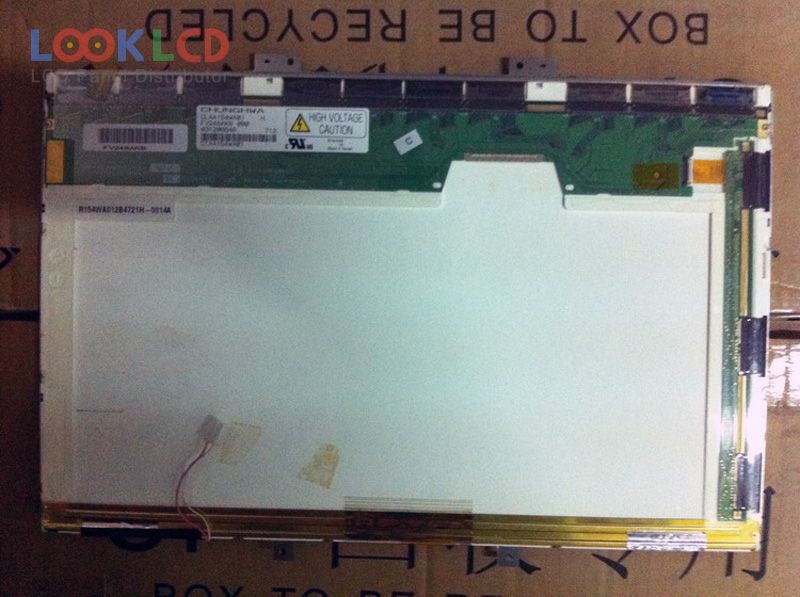

| Artikelnummer | CLAA154WA01 |
| varumärke | CPT |
| Storlek | 15.4 |
| Ansökan | NBPC |
| Upplösning | 1280×800 |
| Sammansättning | LCM |
| Ljusstyrka | 200 |
| CR | 400:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | CPT |
| panelmodell | CLAA154WA01 16 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.4 inch |
| upplösning | 1280(RGB)×800 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 331.2×207 mm |
| skissera | 344×243.5×6.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Antiglare (Haze 12%), Hard coating (3H) |
| ljusstyrka | 200 cd/m² (Typ.) |
| Kontrastförhållande | 400:1 (Typ.) |
| visa färger | 262K (6-bit) |
| respons tid | 8/20 (Typ.)(Tr/Td) |
| betraktningsvinkel | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 1 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6-bit), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
