| Artikelnummer | LQ133K1LD4B |
| varumärke | SHARP |
| Storlek | 13.3 |
| Ansökan | NBPC |
| Upplösning | 1280×800 |
| Sammansättning | LCM |
| Ljusstyrka | 240 |
| CR | 300:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | SHARP |
| panelmodell | LQ133K1LD4B 1 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 13.3 inch |
| upplösning | 1280(RGB)×800 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 286.08×178.8 mm |
| skissera | 299×195×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |

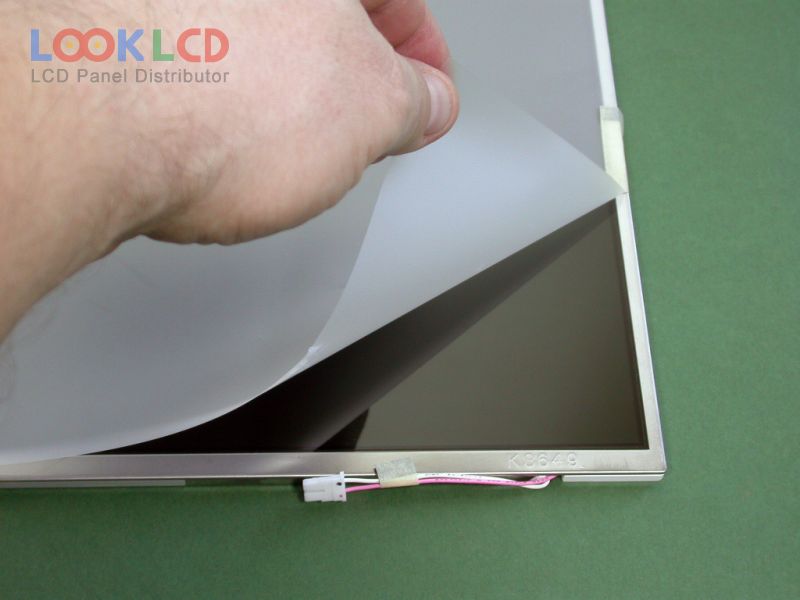

| yta | Clear, Hard coating (2H), Antireflection |
| ljusstyrka | 240 cd/m² (Typ.) |
| Kontrastförhållande | 300:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193150% |
| respons tid | 30 (Typ.)(Tr+Td) |
| betraktningsvinkel | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 1 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6-bit), 20 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
| CLAA133WB01A | CPT | 13.3 | 1366×768 |
| LP133WX1-TLC1 | LG Display | 13.3 | 1280×800 |
| LP133WX2-TLGV | LG Display | 13.3 | 1280×800 |
| LQ133K1LA04 | SHARP | 13.3 | 1280×800 |
| LQ133K1LA4A | SHARP | 13.3 | 1280×800 |
| LQ133K1LD4B | SHARP | 13.3 | 1280×800 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LQ133T1JW01 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW02 | SHARP | 13.3 | 2560×1440 |
| LQ133T1JW19 | SHARP | 13.3 | 2560×1440 |
| B140HTN01.3 | AUO | 14.0 | 1920×1080 |
| LM-DA53-22NTW | SANYO | 8.0 | 640×480 |
| LP140WH2-TLF3 | LG Display | 14.0 | 1366×768 |
| LP154WX7-TLA3 | LG Display | 15.4 | 1280×800 |
| LP156WD1-TLB1 | LG Display | 15.6 | 1600×900 |
| LP156WF4-SPU1 | LG Display | 15.6 | 1920×1080 |
| LP171WP4-TLB1 | LG Display | 17.1 | 1440×900 |
| LP171WP4-TLB4 | LG Display | 17.1 | 1440×900 |
| N140BGE-E33 | Innolux | 14.0 | 1366×768 |
| VVX16T020G00 | Panasonic | 15.5 | 2880×1620 |
