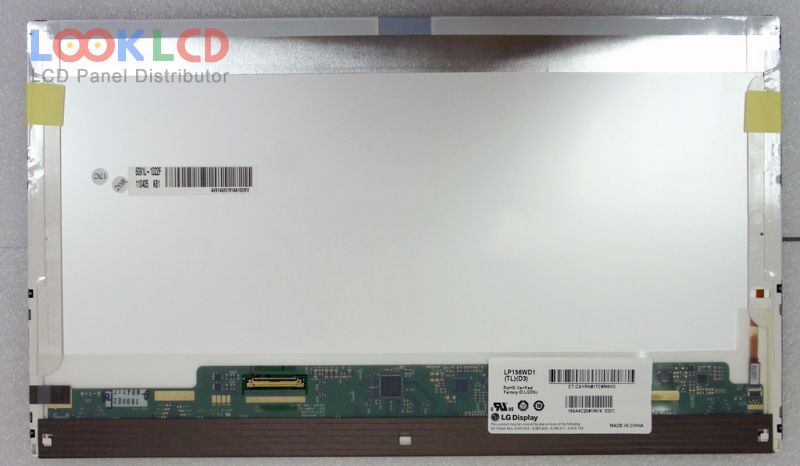

| Artikelnummer | LP156WD1-TLD3 |
| varumärke | LG Display |
| Storlek | 15.6 |
| Ansökan | NBPC |
| Upplösning | 1600×900 |
| Sammansättning | LCM |
| Ljusstyrka | 200 |
| CR | 300:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | LG Display |
| panelmodell | LP156WD1-TLD3 10 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.6 inch |
| upplösning | 1600(RGB)×900 , HD+ |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 344.16×193.59 mm |
| skissera | 359.3×209.5×5.7 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Antiglare, Hard coating (3H) |
| ljusstyrka | 200 cd/m² (Typ.) |
| Kontrastförhållande | 300:1 (Min.) |
| visa färger | 262K (6-bit), CIE193160% |
| respons tid | 8 (Typ.)(Tr+Td) |
| betraktningsvinkel | 60/60/50/50 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS (2 ch, 6-bit), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
