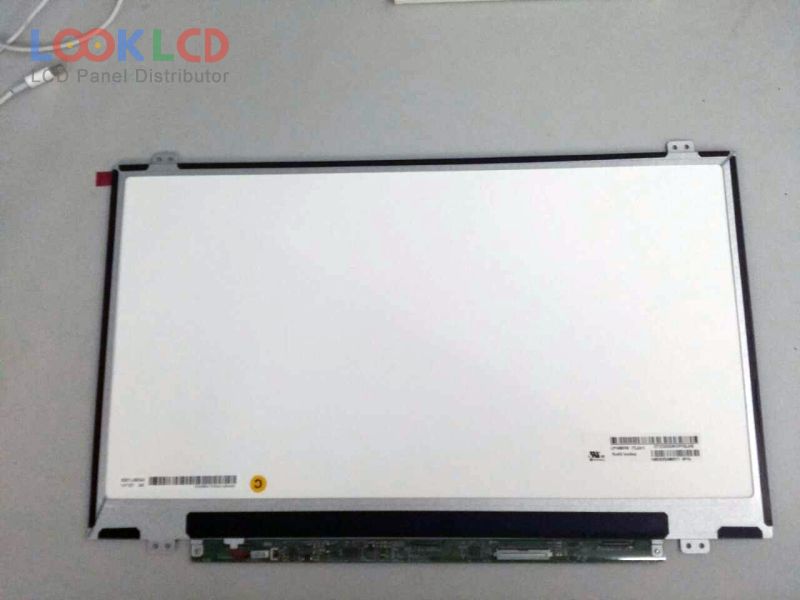

| Artikelnummer | LP140WH8-TLA1 |
| varumärke | LG Display |
| Storlek | 14.0 |
| Ansökan | NBPC |
| Upplösning | 1366×768 |
| Sammansättning | LCM |
| Ljusstyrka | 200 |
| CR | 500:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | LG Display |
| panelmodell | LP140WH8-TLA1 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 14.0 inch |
| upplösning | 1366(RGB)×768 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 309.4×173.95 mm |
| skissera | 320.4×198.6×3.6 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| yta | Glare (Haze 0%) |
| ljusstyrka | 200 cd/m² (Typ.) |
| Kontrastförhållande | 500:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193145% |
| respons tid | 16 (Typ.)(Tr+Td) |
| betraktningsvinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |

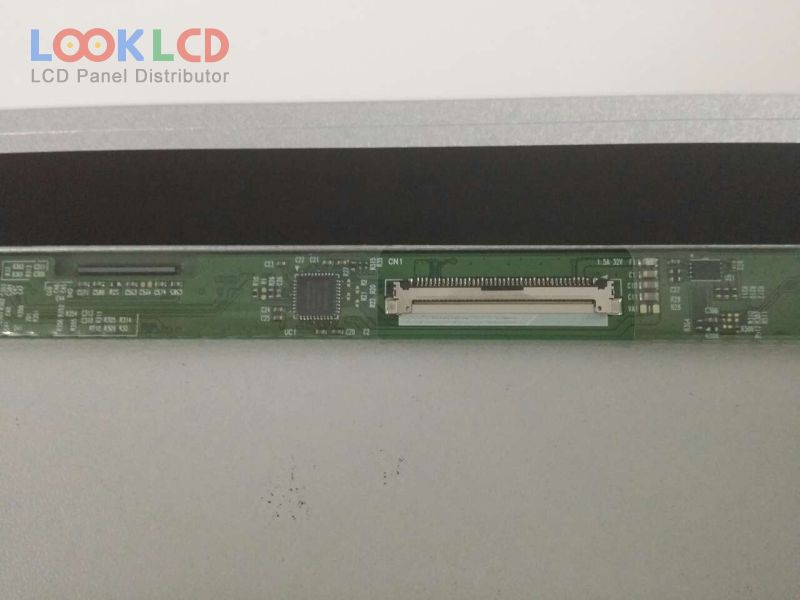

| signalgränssnitt | LVDS (2 ch, 6-bit), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
| LP140WF1-SPK1 | LG Display | 14.0 | 1920×1080 |
| LP140WH1-TLA3 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLB3 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLC3 | LG Display | 14.0 | 1366×768 |
| LP140WH1-TLC6 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TLN1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLA1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLC1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLN1 | LG Display | 14.0 | 1366×768 |
| LP140WH8-TLA1 | LG Display | 14.0 | 1366×768 |
| B140XW01 V4 | AUO | 14.0 | 1366×768 |
| B156XTN05.0 | AUO | 15.6 | 1366×768 |
| CLAA156WA07A | CPT | 15.6 | 1366×768 |
| LP154WP2-TLA2 | LG Display | 15.4 | 1440×900 |
| LP154WU1-A1K1 | LG Display | 15.4 | 1920×1200 |
| LP156WH3-TLA2 | LG Display | 15.6 | 1366×768 |
| LTD131EQ2X | TOSHIBA | 13.1 | 1600×900 |
| LTN154X3-L09-0 | Samsung | 15.4 | 1280×800 |
| LTN170WX-L06 | Samsung | 17.0 | 1440×900 |
| N140B6-D11 | Innolux | 14.0 | 1366×768 |
