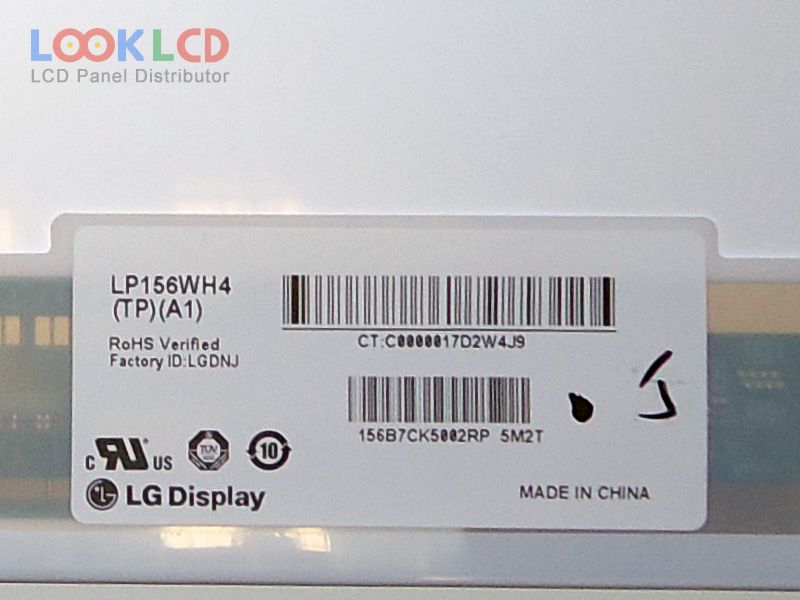

| Artikelnummer | LP156WH4-TPA1 |
| varumärke | LG Display |
| Storlek | 15.6 |
| Ansökan | NBPC |
| Upplösning | 1366×768 |
| Sammansättning | LCM |
| Ljusstyrka | 220 |
| CR | 400:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | eDP |
| panelmärke | LG Display |
| panelmodell | LP156WH4-TPA1 3 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.6 inch |
| upplösning | 1366(RGB)×768 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| skissera | 359.3×209.5×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Glare (Haze 0%) |
| ljusstyrka | 220 cd/m² (Typ.) |
| Kontrastförhållande | 400:1 (Typ.) |
| visa färger | 262K (6-bit) |
| respons tid | 16 (Typ.)(Tr+Td) |
| betraktningsvinkel | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 4 stringsWLEDEmbedded (LED Driver) |
| signalgränssnitt | eDP (1 Lane), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
| LP156WD1-TLD5 | LG Display | 15.6 | 1600×900 |
| LP156WF1-TPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WF4-SPH3 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLD1 | LG Display | 15.6 | 1366×768 |
| LP156WH2-TLF1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TPS2 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPA1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPP1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPD1 | LG Display | 15.6 | 1366×768 |
| CLAA156WA15A | CPT | 15.6 | 1366×768 |
| LP140WH1-TLE2 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLB1 | LG Display | 14.0 | 1366×768 |
| LP156WH2-TLBA | LG Display | 15.6 | 1366×768 |
| LP156WH3-TLQ1 | LG Display | 15.6 | 1366×768 |
| LTM10C348F | TOSHIBA | 10.4 | 800×600 |
| LTN141BT04-002 | Samsung | 14.1 | 1440×900 |
| LTN141BT06-002 | Samsung | 14.1 | 1440×900 |
| LTN154U2-L03 | Samsung | 15.4 | 1920×1200 |
| N140BGE-L23 | Innolux | 14.0 | 1366×768 |
