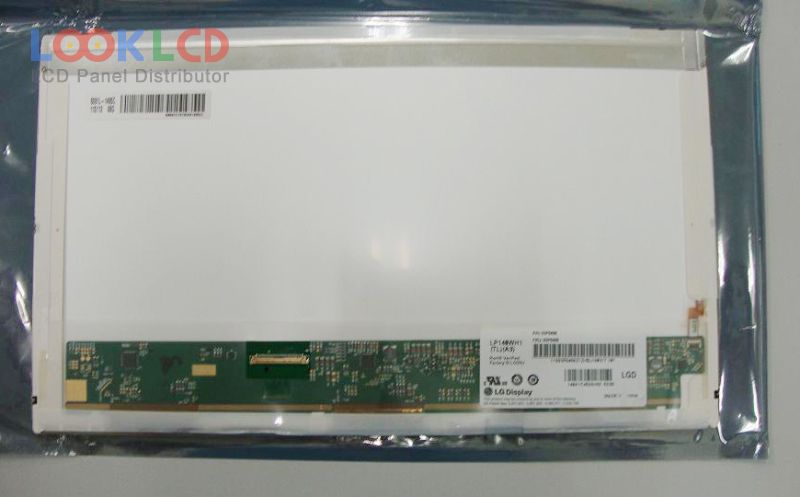

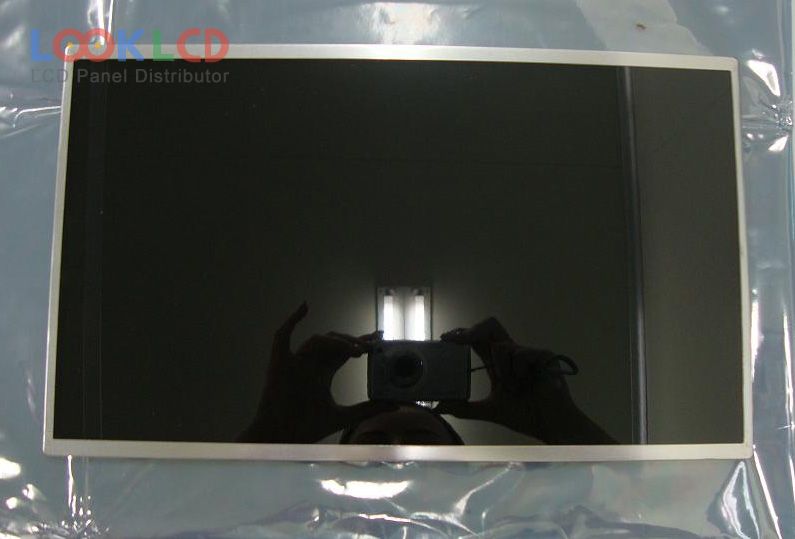

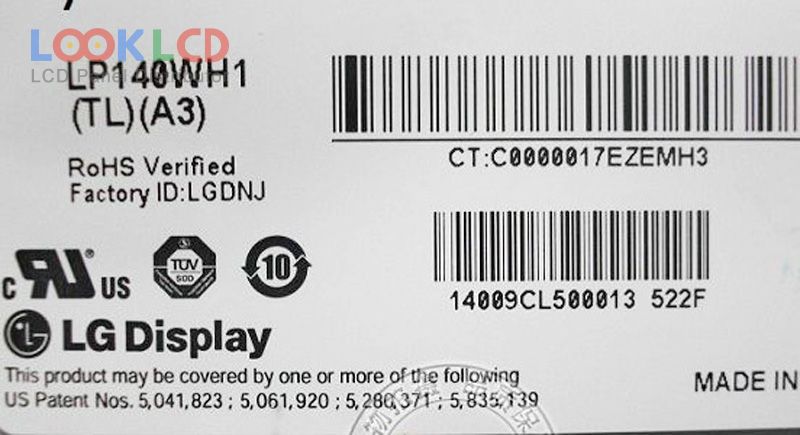

| Artikelnummer | LP140WH1-TLA3 |
| varumärke | LG Display |
| Storlek | 14.0 |
| Ansökan | NBPC |
| Upplösning | 1366×768 |
| Sammansättning | LCM |
| Ljusstyrka | 220 |
| CR | 400:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | LG Display |
| panelmodell | LP140WH1-TLA3 30 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 14.0 inch |
| upplösning | 1366(RGB)×768 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 309.399×173.952 mm |
| skissera | 323.5×192×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Glare (Haze 0%), Hard coating (3H) |
| ljusstyrka | 220 cd/m² (Typ.) |
| Kontrastförhållande | 400:1 (Min.) |
| visa färger | 262K (6-bit), CIE193160% |
| respons tid | 16 (Typ.)(Tr+Td) |
| betraktningsvinkel | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS (1 ch, 6-bit), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
