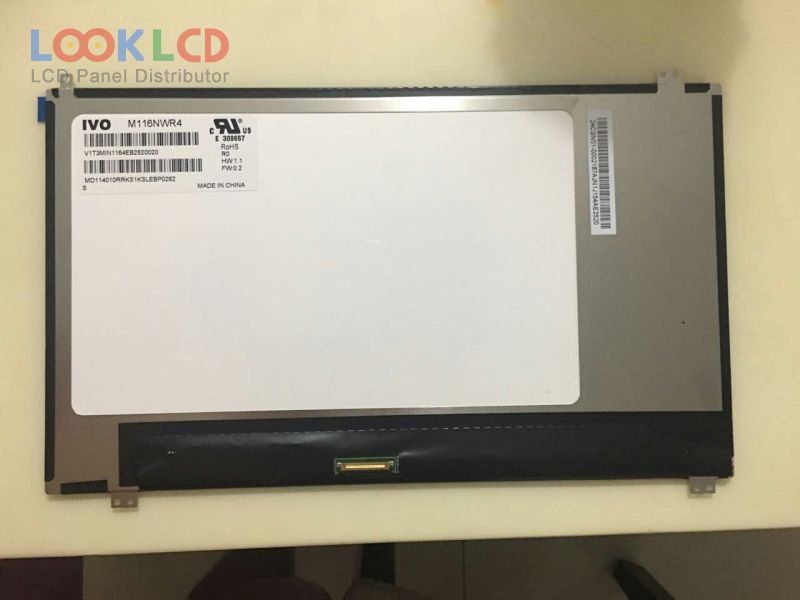

| Artikelnummer | M116NWR4 R0 |
| varumärke | IVO |
| Storlek | 11.6 |
| Ansökan | NBPC |
| Upplösning | 1366×768 |
| Sammansättning | LCM |
| Ljusstyrka | 300 |
| CR | 800:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | eDP |
| panelmärke | IVO |
| panelmodell | M116NWR4 R0 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 11.6 inch |
| upplösning | 1366(RGB)×768 , WXGA |
| visningsläge | IPS, Normally Black, Transmissive |
| aktivt område | 256.13×144 mm |
| skissera | 268×169.5×4.8 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Glare (Haze 0%), Hard coating (3H) |
| ljusstyrka | 300 cd/m² (Typ.) |
| Kontrastförhållande | 800:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193150% |
| respons tid | 25 (Typ.)(Tr+Td) |
| betraktningsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 4 stringsWLEDWithout Driver |
| signalgränssnitt | eDP (2 Lanes), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
| B116AW02 V0 | AUO | 11.6 | 1024×600 |
| LTN116AT01-801 | Samsung | 11.6 | 1366×768 |
| M116NWR1 R0 | IVO | 11.6 | 1366×768 |
| M116NWR1 R1 | IVO | 11.6 | 1366×768 |
| M116NWR1 R3 | IVO | 11.6 | 1366×768 |
| M116NWR1 R7 | IVO | 11.6 | 1366×768 |
| M116NWR4 R0 | IVO | 11.6 | 1366×768 |
| M116NWR6 R0 | IVO | 11.6 | 1366×768 |
| N116BGE-LB1 | Innolux | 11.6 | 1366×768 |
| NT116WHM-N21 | BOE | 11.6 | 1366×768 |
| B133EW06 V0 | AUO | 13.3 | 1280×800 |
| B141EW04 V7 | AUO | 14.1 | 1280×800 |
| B154EW09 V2 | AUO | 15.4 | 1280×800 |
| BT140GW01 V.A | Innolux | 14.0 | 1366×768 |
| LP133WX1-TLN2 | LG Display | 13.3 | 1280×800 |
| LP133X5-A2IB | LG Display | 13.3 | 1024×768 |
| LP140WH4-TLA1 | LG Display | 14.0 | 1366×768 |
| LP171WP4-TLQ1 | LG Display | 17.1 | 1440×900 |
| LTD121EWUD | TOSHIBA | 12.1 | 1280×800 |
| LTN156KT01-003 | Samsung | 15.6 | 1600×900 |
