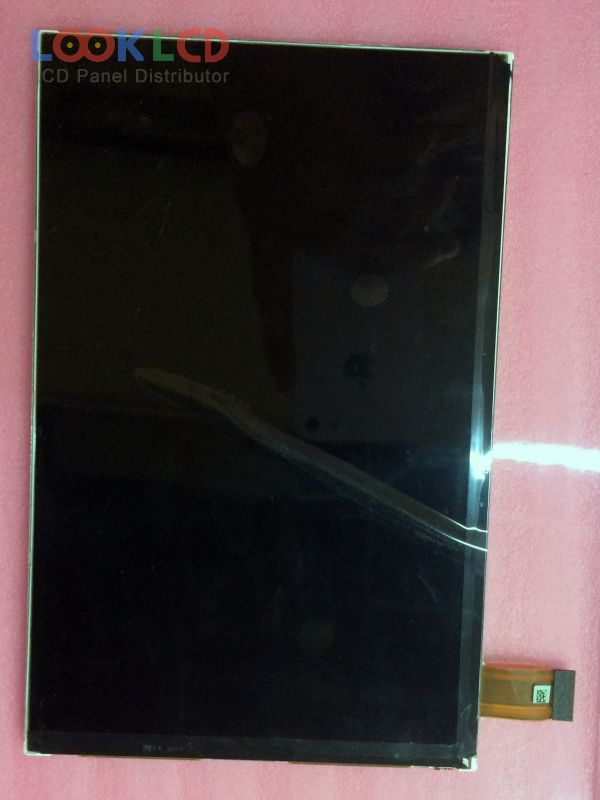

| Artikelnummer | VVX07H005A00 |
| varumärke | Panasonic |
| Storlek | 7.0 |
| Ansökan | PAD |
| Upplösning | 800×1280 |
| Sammansättning | LCM |
| Ljusstyrka | 450 |
| CR | 1000:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | MIPI |
| panelmärke | Panasonic |
| panelmodell | VVX07H005A00 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 7.0 inch |
| upplösning | 800(RGB)×1280 , WXGA |
| visningsläge | IPS, Normally Black, Transmissive |
| aktivt område | 94.2×150.72 mm |
| skissera | 104.32×161.67×3.8 mm |
| yta | Hard coating |
| ljusstyrka | 450 cd/m² (Typ.) |
| Kontrastförhållande | 1000:1 (Typ.) |
| visa färger | 262K (6-bit) |
| respons tid | 30 (Max.)(Tr+Td) |
| betraktningsvinkel | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 5S5PWLEDWithout Driver |

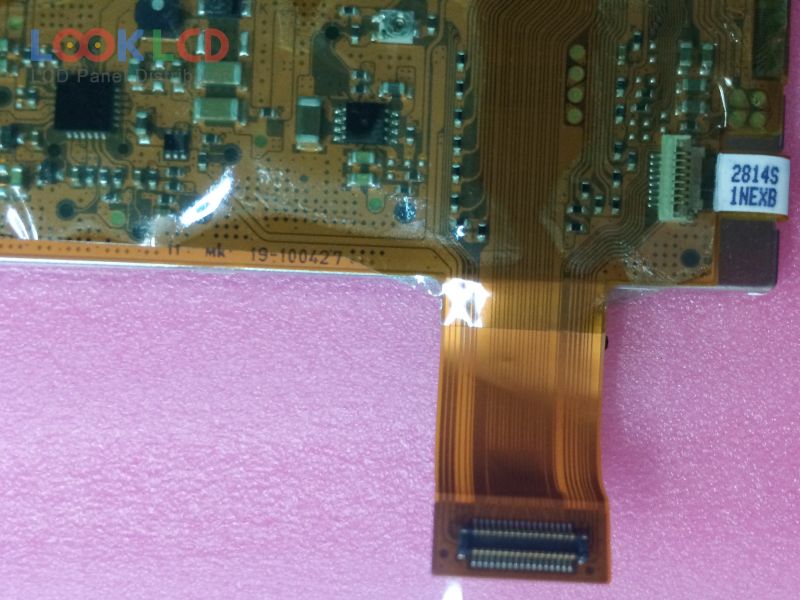

| signalgränssnitt | MIPI (4 data lanes), 34 pins |
| inspänning | 1.8/3.3V (Typ.)(VCC/VDD) |
| Ansökan | PAD |
