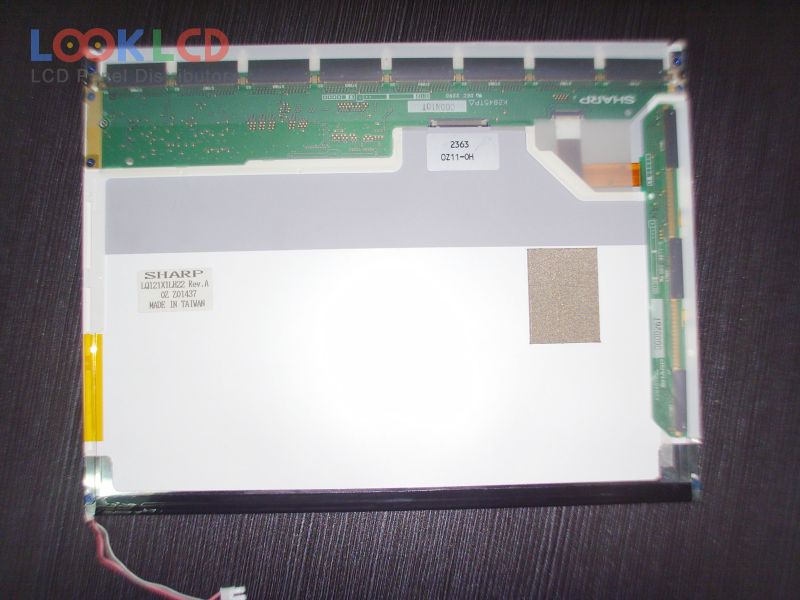

| Artikelnummer | LQ121X1LH22 |
| varumärke | SHARP |
| Storlek | 12.1 |
| Ansökan | NBPC |
| Upplösning | 1024×768 |
| Sammansättning | LCM |
| Ljusstyrka | 160 |
| CR | 300:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | SHARP |
| panelmodell | LQ121X1LH22 6 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 12.1 inch |
| upplösning | 1024(RGB)×768 , XGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 245.76×184.32 mm |
| skissera | 261×199×5.5 mm |
| yta | Antiglare, Hard coating (2H), Reflection 5.0% (Max.) |
| ljusstyrka | 160 cd/m² (Typ.) |
| Kontrastförhållande | 300:1 (Typ.) |
| visa färger | 262K (6-bit) |
| respons tid | 15/30 (Typ.)(Tr/Td) |
| betraktningsvinkel | 45/45/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 1 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6-bit), 20 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
