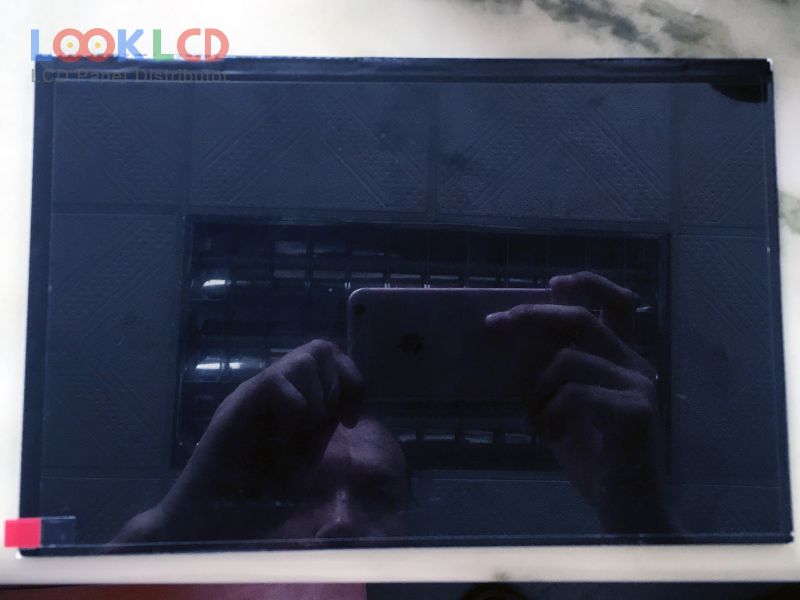

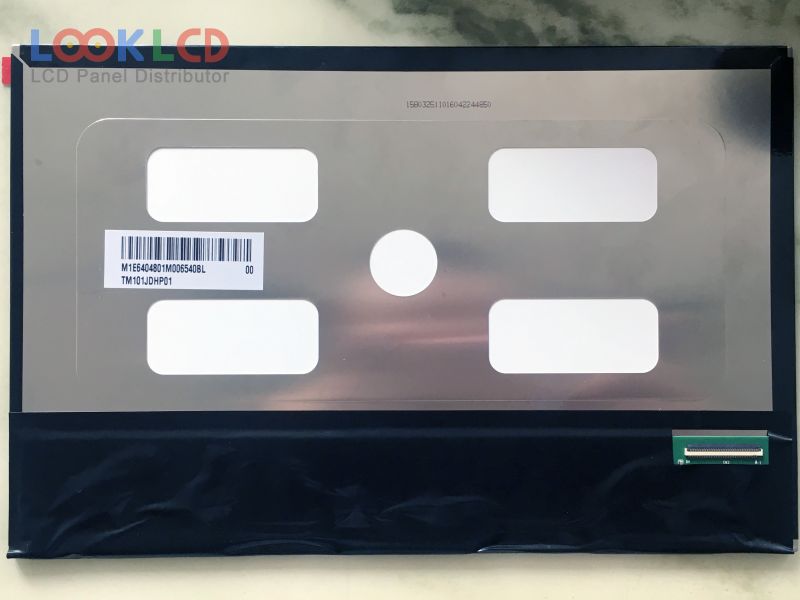

| Artikelnummer | TM101JDHP01 |
| varumärke | Tianma |
| Storlek | 10.1 |
| Ansökan | IA |
| Upplösning | 1280×800 |
| Sammansättning | LCM |
| Ljusstyrka | 400 |
| CR | 800:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | TIANMA |
| panelmodell | TM101JDHP01 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 10.1 inch |
| upplösning | 1280(RGB)×800 , WXGA |
| visningsläge | SFT, Normally Black, Transmissive |
| aktivt område | 216.96×135.6 mm |
| skissera | 229.46×149.1×4.3 mm |
| yta | Hard coating |
| ljusstyrka | 400 cd/m² (Typ.) |
| Kontrastförhållande | 800:1 (Typ.) |
| visa färger | 16.7M (8-bit), CIE193150% |
| respons tid | 10/15 (Typ.)(Tr/Td) |
| betraktningsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 3S11PWLEDWithout Driver |
| signalgränssnitt | LVDS (1 ch, 8-bit), 40 pins |
| inspänning | 3.3/11.0/23/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Ansökan | IA |
