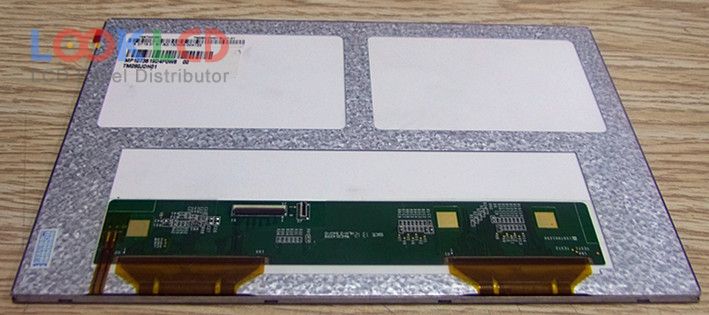

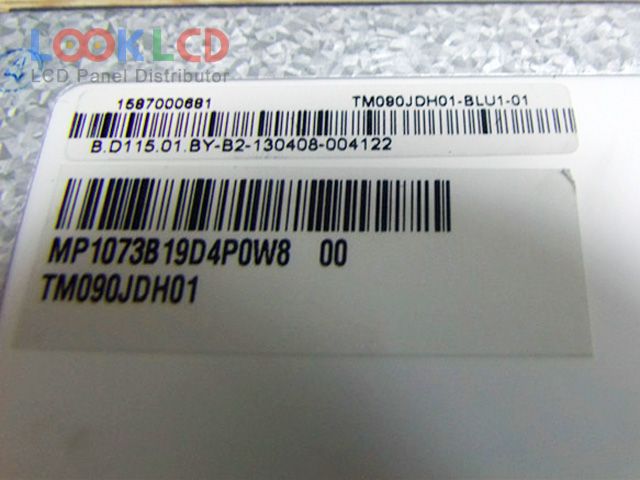

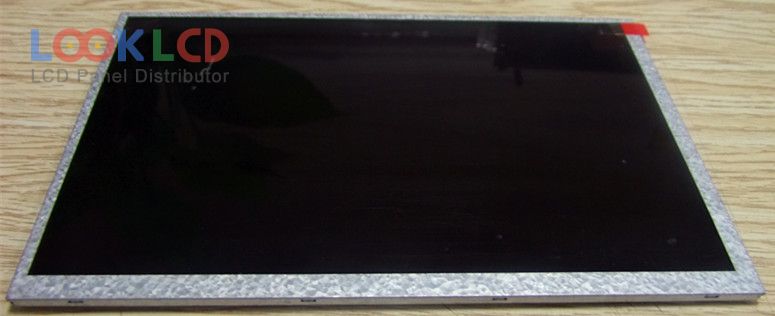

| Artikelnummer | TM090JDH01 |
| varumärke | Tianma |
| Storlek | 9.0 |
| Ansökan | PAD |
| Upplösning | 1280×800 |
| Sammansättning | LCM |
| Ljusstyrka | 250 |
| CR | 700:1 |
| Färger | 262K/16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | TIANMA |
| panelmodell | TM090JDH01 1 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 9.0 inch |
| upplösning | 1280(RGB)×800 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 193.92×121.2 mm |
| skissera | 206.76×135.06×4.8 mm |
| yta | |
| ljusstyrka | 250 cd/m² (Typ.) |
| Kontrastförhållande | 700:1 (Typ.) |
| visa färger | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| respons tid | 25 (Typ.)(Tr+Td) |
| betraktningsvinkel | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 3S12PWLEDWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6/8-bit), 51 pins |
| inspänning | 3.3/11/20/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| Ansökan | PAD |
