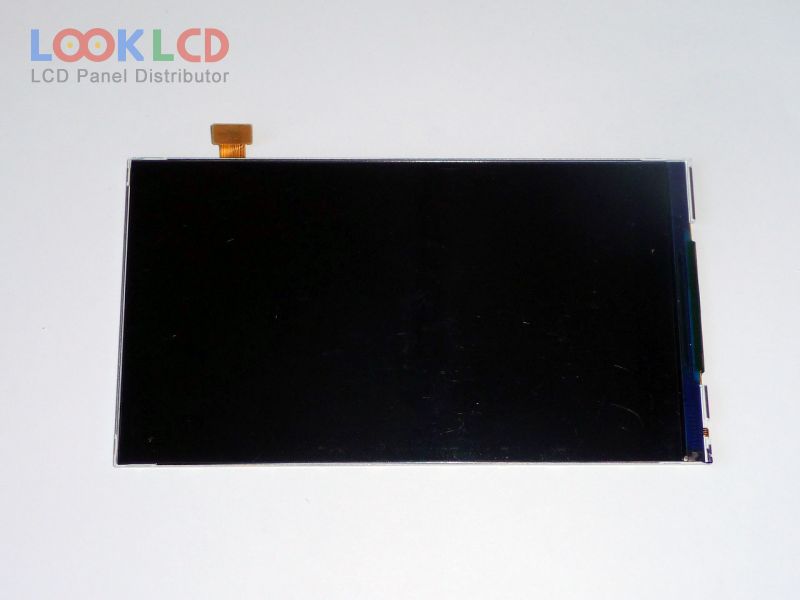

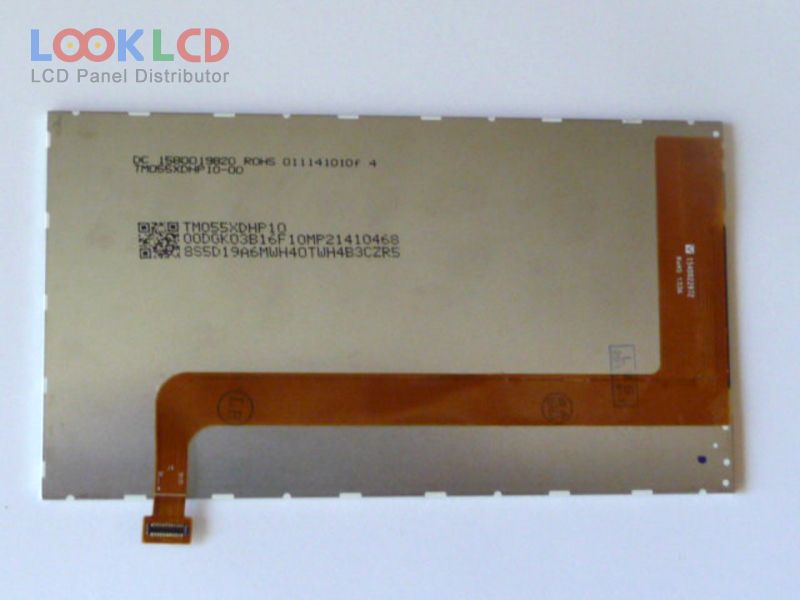

| Artikelnummer | TM055XDHP10 |
| varumärke | Tianma |
| Storlek | 5.5 |
| Ansökan | MPH |
| Upplösning | 540×960 |
| Sammansättning | LCM |
| Ljusstyrka | 350 |
| CR | 800:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | MIPI |
| panelmärke | TIANMA |
| panelmodell | TM055XDHP10 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 5.5 inch |
| upplösning | 540(RGB)×960 , qHD |
| visningsläge | FFS, Normally Black, Transmissive |
| aktivt område | 68.04×120.96 mm |
| skissera | 72.14×130.86×1.95 mm |
| yta | Antiglare (Haze 42%) |
| ljusstyrka | 350 cd/m² (Typ.) |
| Kontrastförhållande | 800:1 (Typ.) |
| visa färger | 16.7M (8-bit), CIE193170% |
| respons tid | 25 (Typ.)(Tr+Td) |
| betraktningsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 80Hz |
| lamptyp | 5S2PWLEDWithout Driver |

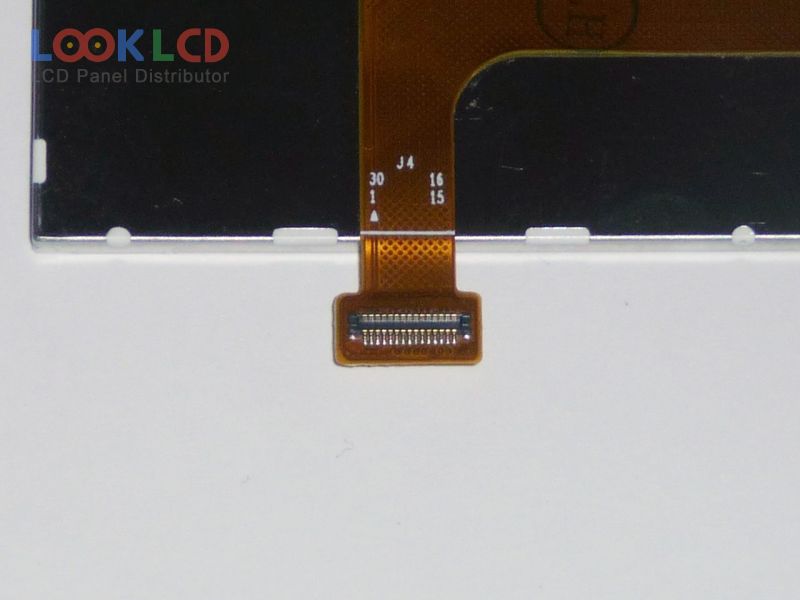

| signalgränssnitt | MIPI (2 data lanes), 30 pins |
| inspänning | 1.8/2.8V (Typ.)(IOVCC/VCC) |
| Ansökan | MPH |
