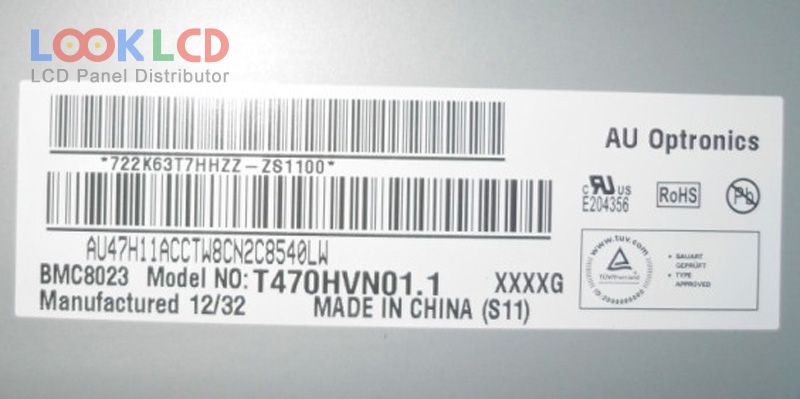

| Artikelnummer | T470HVN01.1 |
| varumärke | AUO |
| Storlek | 47 |
| Ansökan | LCTV |
| Upplösning | 1920×1080 |
| Sammansättning | LCM |
| Ljusstyrka | 350 |
| CR | 3000:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | AUO |
| panelmodell | T470HVN01.1 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 47 inch |
| upplösning | 1920(RGB)×1080 , FHD |
| visningsläge | AMVA, Normally Black, Transmissive |
| aktivt område | 1039.68×584.82 mm |
| skissera | 1070.6×622 mm |
| yta | Antiglare (Haze 2%), Hard coating (3H) |
| ljusstyrka | 350 cd/m² (Typ.) |
| Kontrastförhållande | 3000:1 (Typ.) |
| visa färger | 16.7M (8-bit), CIE193172% |
| respons tid | 6.5 (Typ.)(G to G) |
| betraktningsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS (2 ch, 8-bit), 51 pins |
| inspänning | 12.0V (Typ.) |
| Ansökan | LCTV |
