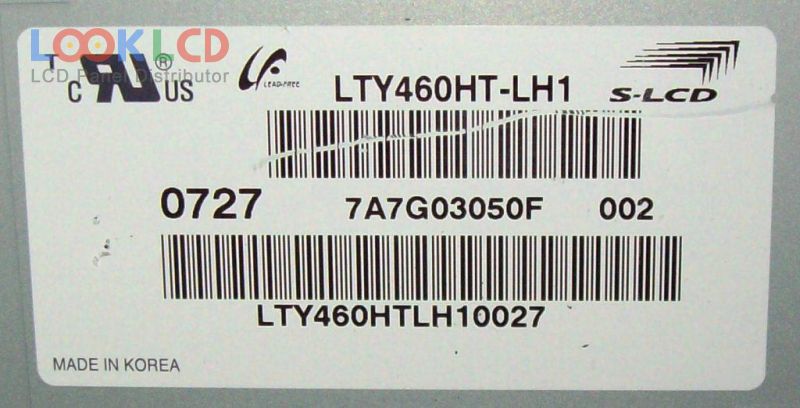

| Artikelnummer | LTY460HT-LH1 |
| varumärke | Samsung |
| Storlek | 46 |
| Ansökan | LCTV |
| Upplösning | 1920×1080 |
| Sammansättning | LCM |
| Ljusstyrka | 500 |
| CR | 1700:1 |
| Färger | 1.07B |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | S-LCD |
| panelmodell | LTY460HT-LH1 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 46 inch |
| upplösning | 1920(RGB)×1080 , FHD |
| visningsläge | SPVA, Normally Black, Transmissive |
| aktivt område | 1018.08×572.67 mm |
| skissera | 1083×627×57.1 mm |
| yta | Hard coating (3H) |
| ljusstyrka | 500 cd/m² (Typ.) |
| Kontrastförhållande | 1700:1 (Typ.) |
| visa färger | 1.07B (10-bit), CIE193191% |
| respons tid | 10/6 (Typ.)(Tr/Td) |
| betraktningsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (Balance board) |
| signalgränssnitt | LVDS (2 ch, 8-bit), 51 pins |
| inspänning | 12.0V (Typ.) |
| Ansökan | LCTV |
| LTA460HM02-W | Samsung | 46 | 1920×1080 |
| LTA460HN08-W | Samsung | 46 | 1920×1080 |
| LTY460HB01 | Samsung | 46 | 1920×1080 |
| LTY460HH-LH2 | Samsung | 46 | 1920×1080 |
| LTY460HN06 | Samsung | 46 | 1920×1080 |
| LTY460HQ05-A01 | Samsung | 46 | 1920×1080 |
| LTY460HS-LH2 | Samsung | 46 | 1920×1080 |
| LTY460HT-LH1 | Samsung | 46 | 1920×1080 |
| LTY460JN12 | Other | 46 | 1920×1080 |
| V460H1-LS1 Rev.C6 | Innolux | 46 | 1920×1080 |
| LC370WXN-SBA1 | LG Display | 37 | 1366×768 |
| LC420DUE-SFR2 | LG Display | 42 | 1920×1080 |
| LC420WUN-SBD2 | LG Display | 42 | 1920×1080 |
| LC550EQE-PGF2 | LG Display | 55 | 3840×2160 |
| LC550EUG-PEF1 | LG Display | 55 | 1920×1080 |
| T400HVN01.0 CELL | AUO | 40 | 1920×1080 |
| T500HVN04.5 CELL | AUO | 50 | 1920×1080 |
| T576DC01 V0 | AUO | 58 | 2560×1080 |
| V216B1-L03 | Innolux | 21.6 | 1366×768 |
| V460H1-LS2 | Innolux | 46 | 1920×1080 |
