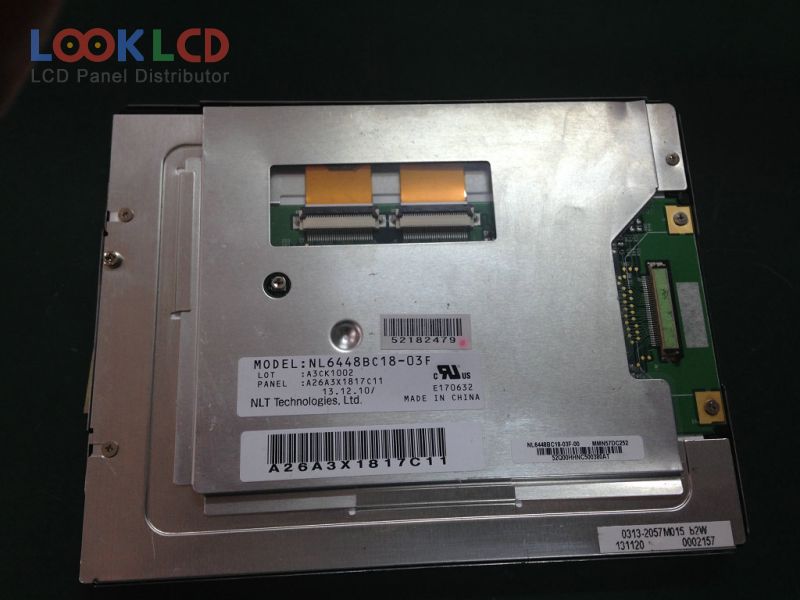

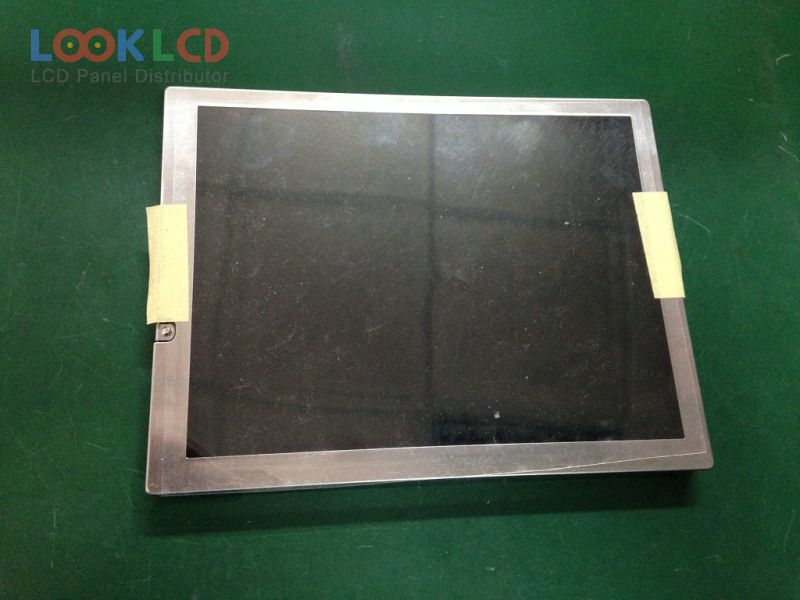

| Artikelnummer | NL6448BC18-03F |
| varumärke | NLT |
| Storlek | 5.7 |
| Ansökan | IA |
| Upplösning | 640×480 |
| Sammansättning | LCM |
| Ljusstyrka | 800 |
| CR | 850:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | TTL |
| panelmärke | NEC |
| panelmodell | NL6448BC18-03F 1 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 5.7 inch |
| upplösning | 640(RGB)×480 , VGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 116.16×87.12 mm |
| skissera | 135×104.6×10.9 mm |
| yta | Clear, Hard coating (3H) |
| ljusstyrka | 800 cd/m² (Typ.) |
| Kontrastförhållande | 850:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193160% |
| respons tid | 3/15 (Typ.)(Tr/Td) |
| betraktningsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 9S2P×2CNWLEDWithout Driver |
| signalgränssnitt | CMOS (1 ch, 6-bit), 33 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | IA |
| NL6448BC18-01 | NLT | 5.7 | 640×480 |
| NL6448BC18-06F | NLT | 5.7 | 640×480 |
| NL6448BC20-08 | NLT | 6.5 | 640×480 |
| NL6448BC20-18D | NLT | 6.5 | 640×480 |
| NL6448BC20-30F | NLT | 6.5 | 640×480 |
| NL6448BC33-63D | NLT | 10.4 | 640×480 |
| NL6448BC33-64D | NLT | 10.4 | 640×480 |
| NL6448BC33-64E | NLT | 10.4 | 640×480 |
| NL6448BC33-70D | NLT | 10.4 | 640×480 |
| NL6448BC33-74 | NLT | 10.4 | 640×480 |
| AM-640480G4TNQW-A0H | AMPIRE | 5.7 | 640×480 |
| B084SN01 V2 | AUO | 8.4 | 800×600 |
| BRS-320H02 | 32.0 | 1920×1080 | |
| G150XG02 V0 | AUO | 15.0 | 1024×768 |
| KCG057QV1DB-G500 | Kyocera | 5.7 | 320×240 |
| KG057QV1CA-G02 | Kyocera | 5.7 | 320×240 |
| LM12S49 | SHARP | 12.1 | 800×600 |
| NL8048AC19-13 | NLT | 7.0 | 800×480 |
| T-55561D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
| TX16D11VM2CCA | KOE | 6.2 | 640×240 |
