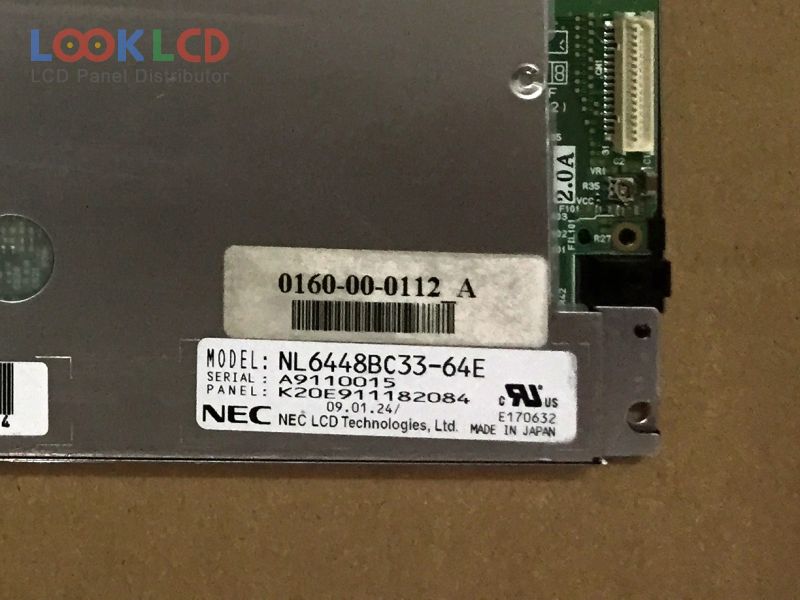

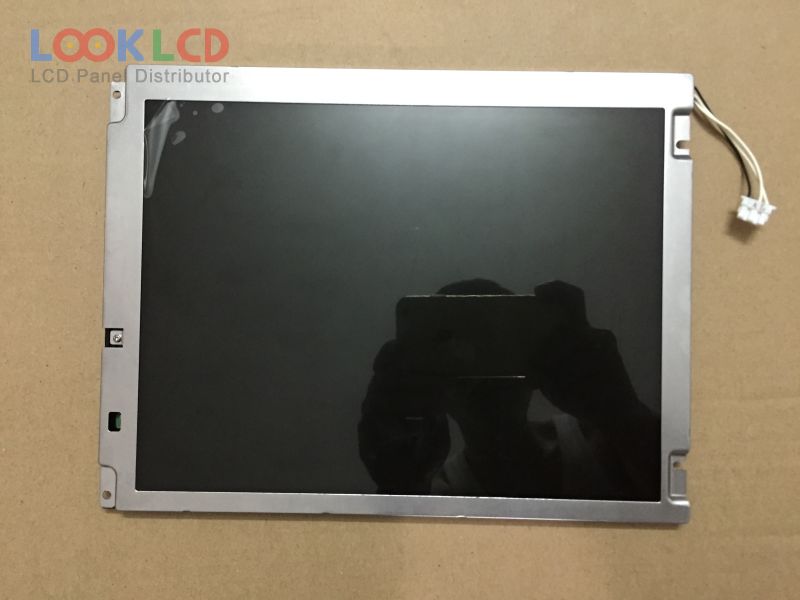

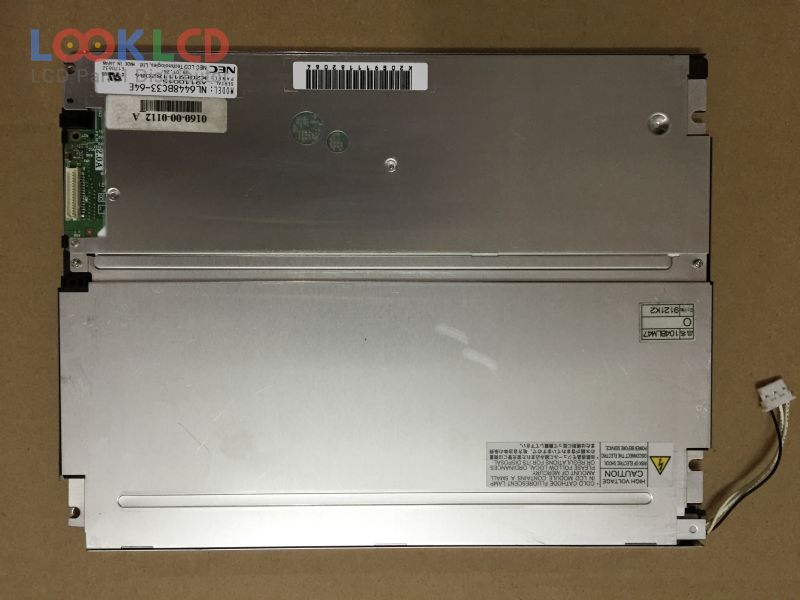

| Artikelnummer | NL6448BC33-64E |
| varumärke | NLT |
| Storlek | 10.4 |
| Ansökan | IA |
| Upplösning | 640×480 |
| Sammansättning | LCM |
| Ljusstyrka | 450 |
| CR | 600:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | TTL |
| panelmärke | NEC |
| panelmodell | NL6448BC33-64E |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 10.4 inch |
| upplösning | 640(RGB)×480 , VGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| skissera | 243×185.1×11 mm |
| yta | Antiglare, Hard coating (3H) |
| ljusstyrka | 450 cd/m² (Typ.) |
| Kontrastförhållande | 600:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193140% |
| respons tid | 6/19 (Typ.)(Tr/Td) |
| betraktningsvinkel | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 2 pcsCCFLWithout Driver |
| signalgränssnitt | CMOS (1 ch, 6-bit), 31 pins |
| inspänning | 3.3/5.0V (Typ.) |
| Ansökan | IA |
