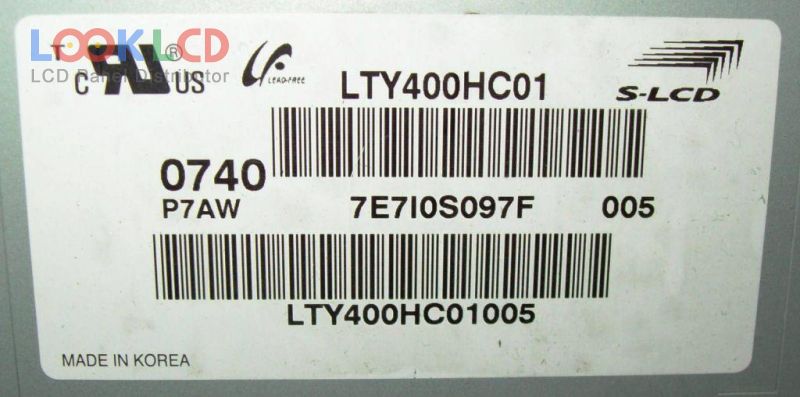

| Artikelnummer | LTY400HC01 |
| varumärke | Samsung |
| Storlek | 40 |
| Ansökan | LCTV |
| Upplösning | 1920×1080 |
| Sammansättning | LCM |
| Ljusstyrka | 550 |
| CR | 2000:1 |
| Färger | 1.07B |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | S-LCD |
| panelmodell | LTY400HC01 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 40 inch |
| upplösning | 1920(RGB)×1080 , FHD |
| visningsläge | S-PVA, Normally Black, Transmissive |
| aktivt område | 885.6×498.15 mm |
| skissera | 952×551×54.2 mm |
| yta | Hard coating (3H) |
| ljusstyrka | 550 cd/m² (Typ.) |
| Kontrastförhållande | 2000:1 (Typ.) |
| visa färger | 1.07B (10-bit), CIE193190% |
| respons tid | 8/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| betraktningsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 120Hz |
| lamptyp | 20 pcsCCFLEmbedded (Balance board) |
| signalgränssnitt | LVDS (4 ch, 10-bit), 92 pins |
| inspänning | 12.0V (Typ.) |
| Ansökan | LCTV |
| LTY400HA01 | Samsung | 40 | 1920×1080 |
| LTY400HC01 | Samsung | 40 | 1920×1080 |
| LTY400HC02 | Samsung | 40 | 1920×1080 |
| LTY400HF06 | Samsung | 40 | 1920×1080 |
| LTY400HL03 | Samsung | 40 | 1920×1080 |
| LTY400HM09 | Samsung | 40 | 1920×1080 |
| LTY400HM10 | Samsung | 40 | 1920×1080 |
| LTY400WS-L02 | Samsung | 40 | 1366×768 |
| V400DK2-KS5 | Innolux | 40 | 3840×2160 |
| V400H1-L10 | Innolux | 40 | 1920×1080 |
| HV650QUB-B00 | BOE | 65 | 3840×2160 |
| LC320EXN-SEA3 | LG Display | 31.5 | 1366×768 |
| LC550EUE-SEU1 | LG Display | 55 | 1920×1080 |
| LTA400HF09 | Samsung | 40 | 1920×1080 |
| LTA400HM17-W | Samsung | 40 | 1920×1080 |
| LTA400HV01 | Samsung | 40 | 1920×1080 |
| LTA460HA07 | Samsung | 46 | 1920×1080 |
| T315XW02 VM | AUO | 31.5 | 1366×768 |
| T550HVN01.3 CELL | AUO | 55 | 1920×1080 |
| V500HK1-LS6 Rev.E7 | Innolux | 50 | 1920×1080 |
