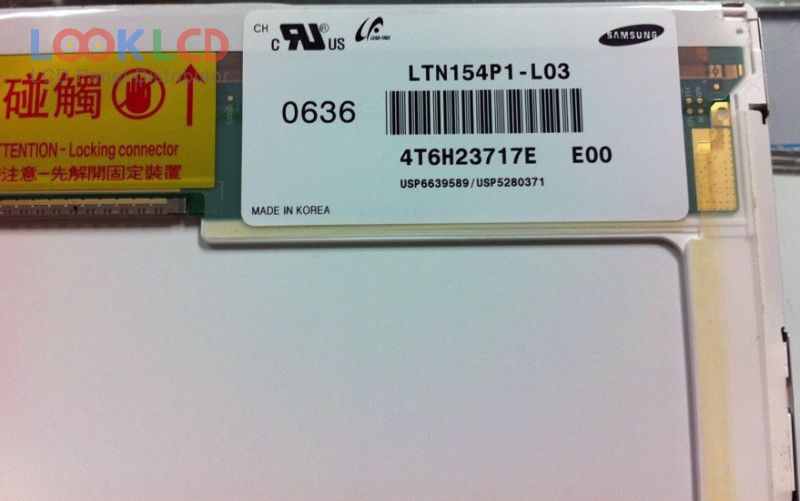

| Artikelnummer | LTN154P1-L03 |
| varumärke | Samsung |
| Storlek | 15.4 |
| Ansökan | NBPC |
| Upplösning | 1680×1050 |
| Sammansättning | LCM |
| Ljusstyrka | 185 |
| CR | 300:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | SAMSUNG |
| panelmodell | LTN154P1-L03 2 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.4 inch |
| upplösning | 1680(RGB)×1050 , WSXGA+ |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 331.38×207.11 mm |
| skissera | 344×222×6.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Glare (Haze 0%), Hard coating (3H) |
| ljusstyrka | 185 cd/m² (Typ.) |
| Kontrastförhållande | 300:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193145% |
| respons tid | 25 (Typ.)(Tr+Td) |
| betraktningsvinkel | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 1 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (2 ch, 6-bit), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
