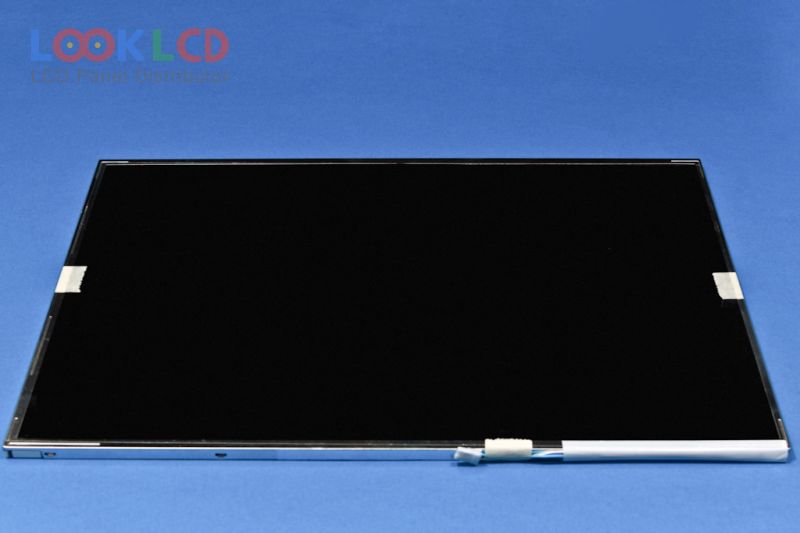

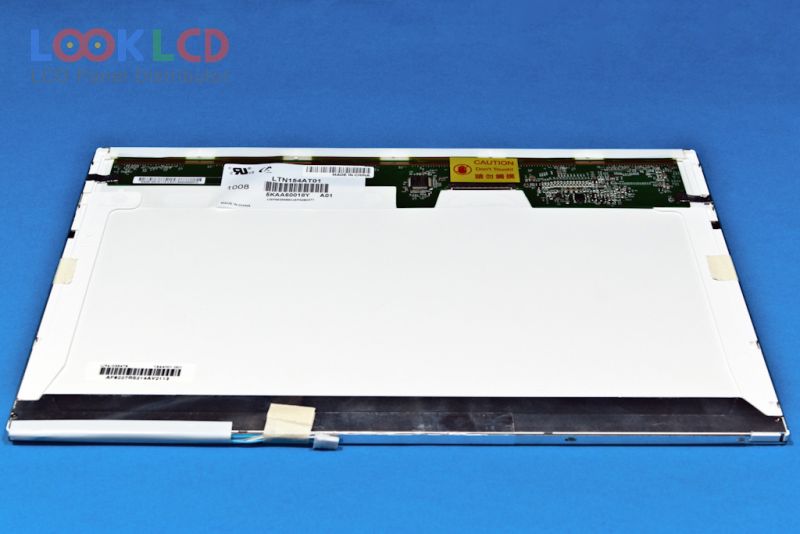

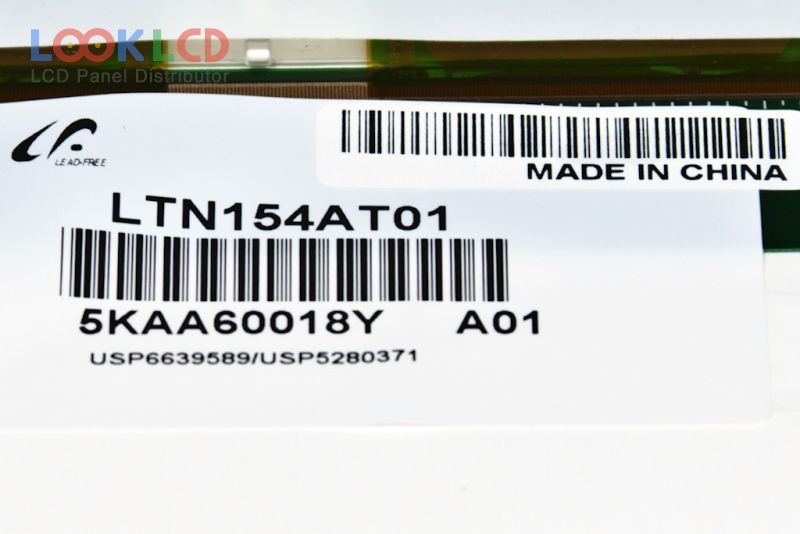

| Artikelnummer | LTN154AT01-A01 |
| varumärke | Samsung |
| Storlek | 15.4 |
| Ansökan | NBPC |
| Upplösning | 1280×800 |
| Sammansättning | LCM |
| Ljusstyrka | 220 |
| CR | 300:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | SAMSUNG |
| panelmodell | LTN154AT01-A01 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.4 inch |
| upplösning | 1280(RGB)×800 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 331.2×207 mm |
| skissera | 344×222×6.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Glare (Haze 0%), Hard coating (3H) |
| ljusstyrka | 220 cd/m² (Typ.) |
| Kontrastförhållande | 300:1 (Min.) |
| visa färger | 262K (6-bit) |
| respons tid | 8 (Typ.)(Tr+Td) |
| betraktningsvinkel | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 1 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6-bit), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
| LTN154AT01-A01 | Samsung | 15.4 | 1280×800 |
| LTN154AT01-A03 | Samsung | 15.4 | 1280×800 |
| LTN154AT07-H01 | Samsung | 15.4 | 1280×800 |
| LTN154AT07-L01 | Samsung | 15.4 | 1280×800 |
| LTN154AT08-001 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-101 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-102 | Samsung | 15.4 | 1280×800 |
| LTN154AT09-201 | Samsung | 15.4 | 1280×800 |
| LTN154AT12-D01 | Samsung | 15.4 | 1280×800 |
| LTN154AT13-701 | Samsung | 15.4 | 1280×800 |
| B121EW03 V3 | AUO | 12.1 | 1280×800 |
| B133EW01 V0 | AUO | 13.3 | 1280×800 |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| LP173WF1-TLA2 | LG Display | 17.3 | 1920×1080 |
| LQ141X1LH03 | SHARP | 14.1 | 1024×768 |
| LT133EE09400 | TOSHIBA | 13.3 | 1366×768 |
| LTN170CT08-D01 | Samsung | 17.0 | 1920×1200 |
| N140FGE-EA2 | Innolux | 14.0 | 1600×900 |
| N140HGE-EAA | Innolux | 14.0 | 1920×1080 |
| TM121XG-02L01 | SANYO | 12.1 | 1024×768 |
