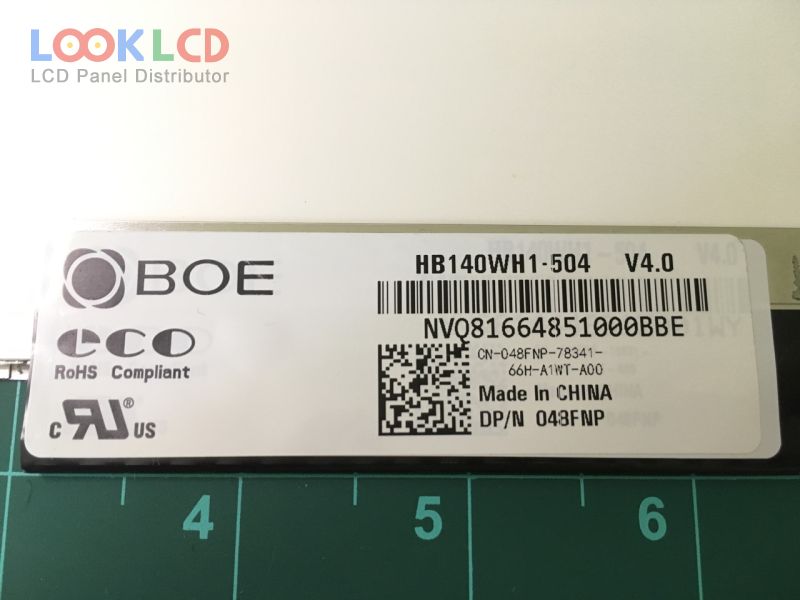

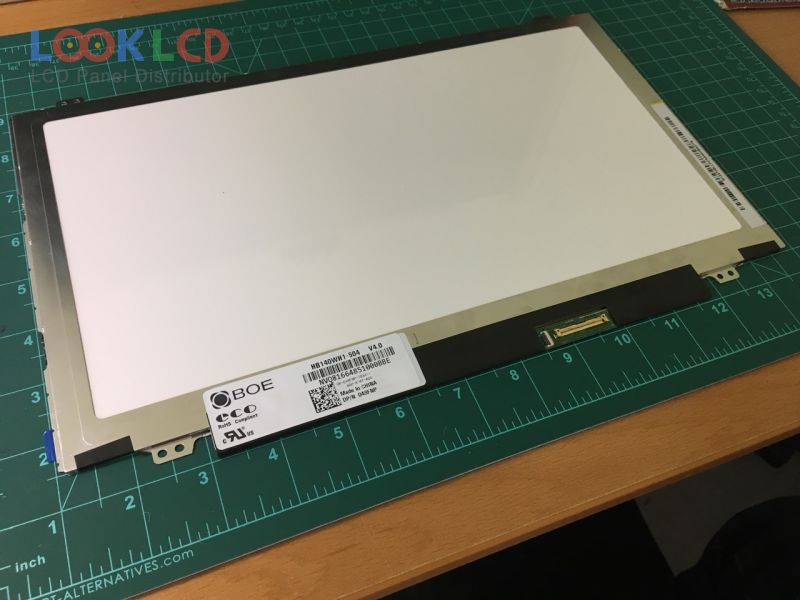

| Artikelnummer | HB140WH1-504 |
| varumärke | BOE |
| Storlek | 14.0 |
| Ansökan | NBPC |
| Upplösning | 1366×768 |
| Sammansättning | LCM |
| Ljusstyrka | 220 |
| CR | 600:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | eDP |
| panelmärke | BOE |
| panelmodell | HB140WH1-504 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 14.0 inch |
| upplösning | 1366(RGB)×768 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 309.399×173.952 mm |
| skissera | 320.9×187.6 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| yta | Hard coating (7H) |
| ljusstyrka | 220 cd/m² (Typ.) |
| Kontrastförhållande | 600:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193145% |
| respons tid | 12 (Typ.)(Tr+Td) |
| betraktningsvinkel | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 8S4PWLEDEmbedded (LED Driver) |
| signalgränssnitt | eDP (1 Lane), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
| HB140WH1-504 | BOE | 14.0 | 1366×768 |
| HB140WX1-100 | BOE | 14.0 | 1366×768 |
| HB140WX1-200 | BOE | 14.0 | 1366×768 |
| HB140WX1-300 | BOE | 14.0 | 1366×768 |
| HB140WX1-301 | BOE | 14.0 | 1366×768 |
| HB140WX1-400 | BOE | 14.0 | 1366×768 |
| HB140WX1-401 | BOE | 14.0 | 1366×768 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| HB140WX1-501 | BOE | 14.0 | 1366×768 |
| LP140WD2-TLE2 | LG Display | 14.0 | 1600×900 |
| B133XW03 V1 | AUO | 13.3 | 1366×768 |
| CLAA184FP01 | CPT | 18.4 | 1920×1080 |
| LP133WX1-TLN3 | LG Display | 13.3 | 1280×800 |
| LP156WH2-TLE1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TPS2 | LG Display | 15.6 | 1366×768 |
| LTD121EXPV | TOSHIBA | 12.1 | 1280×800 |
| LTN154AT09-102 | Samsung | 15.4 | 1280×800 |
| LTN156AT19-W01 | Samsung | 15.6 | 1366×768 |
| N140BGE-L32 | Innolux | 14.0 | 1366×768 |
| N141I3-L05 | Innolux | 14.1 | 1280×800 |
