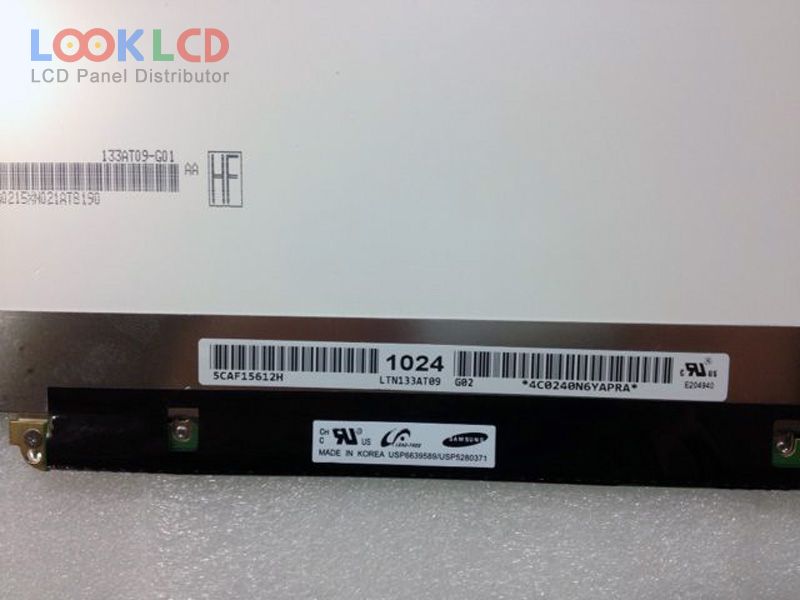

| Artikelnummer | LTN133AT09-G02 |
| varumärke | Samsung |
| Storlek | 13.3 |
| Ansökan | NBPC |
| Upplösning | 1280×800 |
| Sammansättning | LCM |
| Ljusstyrka | 275 |
| CR | 700:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | SAMSUNG |
| panelmodell | LTN133AT09-G02 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 13.3 inch |
| upplösning | 1280(RGB)×800 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 286.08×178.8 mm |
| skissera | 297.15×192.15×3.68 mm |
| form stil | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| yta | Glare (Haze 0%), Hard coating (3H) |
| ljusstyrka | 275 cd/m² (Typ.) |
| Kontrastförhållande | 700:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193145% |
| respons tid | 16 (Typ.)(Tr+Td) |
| betraktningsvinkel | 70/70/55/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 9S6PWLEDWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6-bit), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
| LTN133AT03-001 | Samsung | 13.3 | 1280×800 |
| LTN133AT13-001 | Samsung | 13.3 | 1280×800 |
| LTN133AT14-001 | Samsung | 13.3 | 1280×800 |
| LTN133AT16-L01 | Samsung | 13.3 | 1280×800 |
| LTN133AT17-104 | Samsung | 13.3 | 1366×768 |
| LTN133AT17-H01 | Samsung | 13.3 | 1366×768 |
| LTN133AT17-W01 | Samsung | 13.3 | 1366×768 |
| LTN133AT23-001 | Samsung | 13.3 | 1366×768 |
| LTN133AT23-X01 | Samsung | 13.3 | 1366×768 |
| LTN133AT25-T01 | Samsung | 13.3 | 1366×768 |
| B121EW03 V9 | AUO | 12.1 | 1280×800 |
| B133HAN02.0 | AUO | 13.3 | 1920×1080 |
| LP104V1 | LG Display | 10.4 | 640×480 |
| LP140WH2-TLB1 | LG Display | 14.0 | 1366×768 |
| LP154WX4-TLB4 | LG Display | 15.4 | 1280×800 |
| LP156WH1-TLC1 | LG Display | 15.6 | 1366×768 |
| LP156WH3-TPS2 | LG Display | 15.6 | 1366×768 |
| LTN156AT20-P01 | Samsung | 15.6 | 1366×768 |
| N154I3-L03 | Innolux | 15.4 | 1280×800 |
| NV140FHM-N41 | BOE | 14.0 | 1920×1080 |
