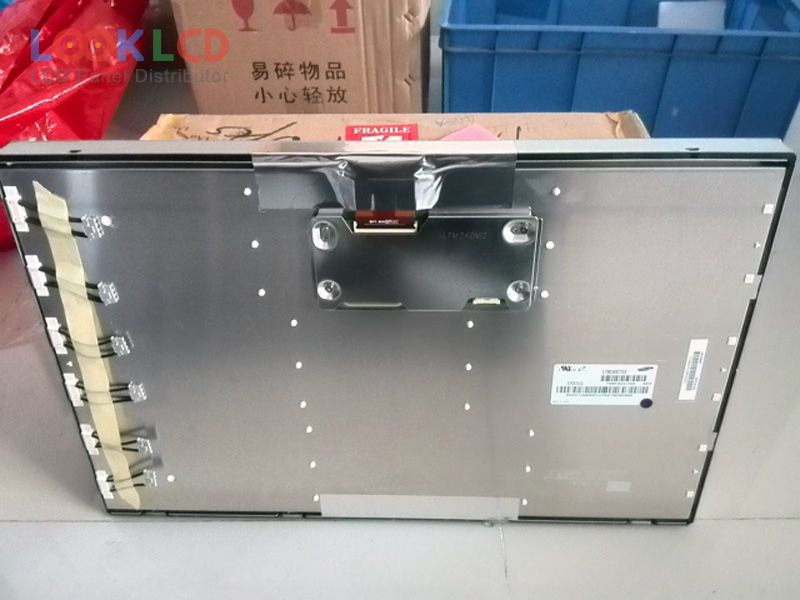

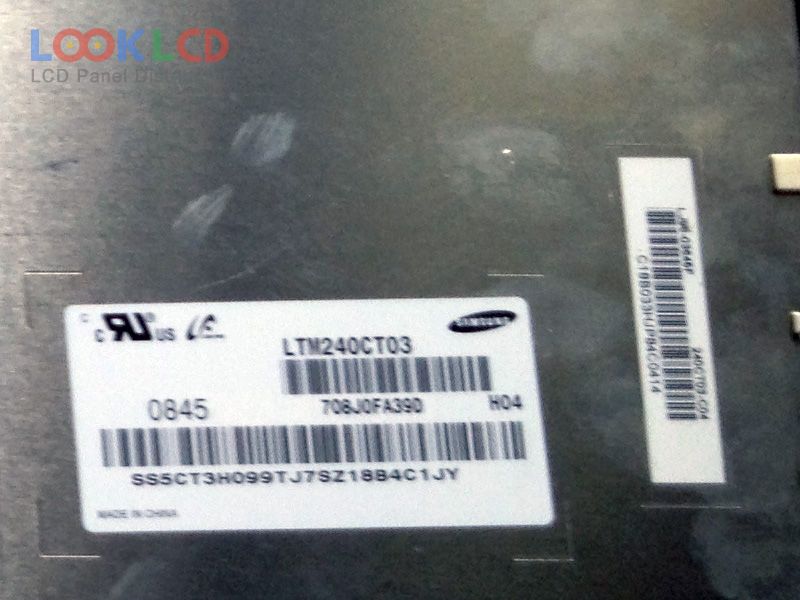

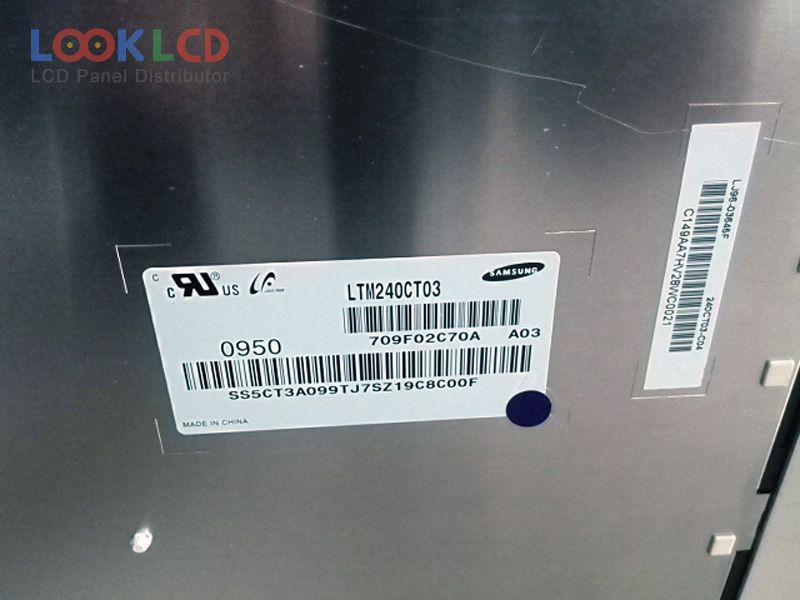

| Artikelnummer | LTM240CT03 |
| varumärke | Samsung |
| Storlek | 24.0 |
| Ansökan | DMPC |
| Upplösning | 1920×1200 |
| Sammansättning | LCM |
| Ljusstyrka | 400 |
| CR | 1000:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | SAMSUNG |
| panelmodell | LTM240CT03 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 24.0 inch |
| upplösning | 1920(RGB)×1200 , WUXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 518.4×324 mm |
| skissera | 546.4×352×36.3 mm |
| yta | Antiglare (Haze 25%), Hard coating (3H), Antireflection |
| ljusstyrka | 400 cd/m² (Typ.) |
| Kontrastförhållande | 1000:1 (Typ.) |
| visa färger | 16.7M (6-bit + Hi-FRC), CIE193192% |
| respons tid | 5 (Typ.)(Tr+Td) |
| betraktningsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 6 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (2 ch, 8-bit), 30 pins |
| inspänning | 5.0V (Typ.) |
| Ansökan | DMPC |
