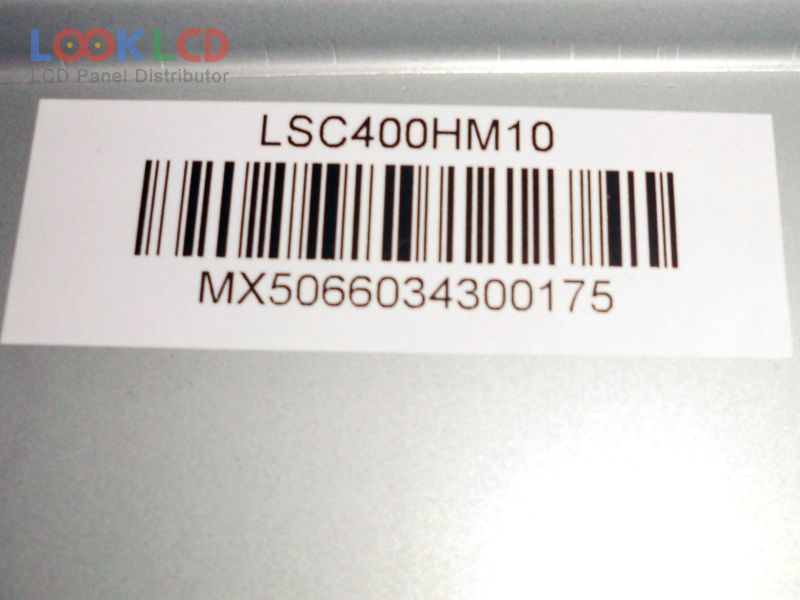

| Artikelnummer | LSC400HM10 |
| varumärke | Samsung |
| Storlek | 40 |
| Ansökan | LCTV |
| Upplösning | 1920×1080 |
| Sammansättning | CELL |
| Ljusstyrka | 0 |
| CR | 4000:1 |
| Färger | 1.07B |
| Bakgrundsbelysning | No B/L |
| Gränssnitt | LVDS |
| panelmärke | SAMSUNG |
| panelmodell | LSC400HM10 |
| paneltyp | a-Si TFT-LCD , CELL |
| panelstorlek | 40 inch |
| upplösning | 1920(RGB)×1080 , FHD |
| visningsläge | PVA, Normally Black, Transmissive |
| aktivt område | 885.6×498.15 mm |
| skissera | 899.6×513.95 mm |
| yta | Antiglare |
| glasdjup | 0.70+0.70 mm |
| transmissivitet | 5.6% (Typ.)(with Polarizer) |
| Kontrastförhållande | 4000:1 (Typ.) |
| visa färger | 1.07B (8-bit + Dithering), CIE193168% |
| respons tid | 8 (Typ.)(G to G) |
| betraktningsvinkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| signalgränssnitt | LVDS (2 ch, 10-bit), 51 pins |
| inspänning | 12.0V (Typ.) |
| Ansökan | LCTV |
