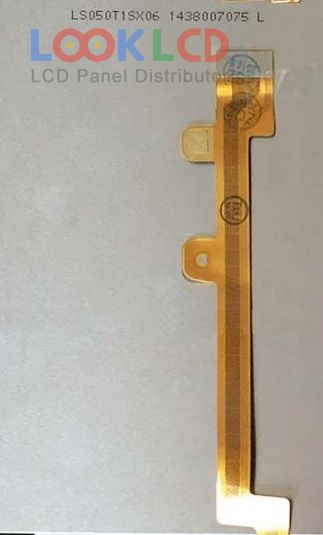

| Artikelnummer | LS050T1SX06 |
| varumärke | SHARP |
| Storlek | 5.0 |
| Ansökan | MPH |
| Upplösning | 1080×1920 |
| Sammansättning | LCM |
| Ljusstyrka | 480 |
| CR | 1000:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | MIPI |
| panelmärke | SHARP |
| panelmodell | LS050T1SX06 |
| paneltyp | CG-Silicon , LCM |
| panelstorlek | 5.0 inch |
| upplösning | 1080(RGB)×1920 , FHD |
| visningsläge | New Mode2, Normally Black, Transmissive |
| aktivt område | 61.884×110.016 mm |
| skissera | 64.3×116.6×1.5 mm |
| yta | |
| ljusstyrka | 480 cd/m² (Typ.) |
| Kontrastförhållande | 1000:1 (Typ.) |
| visa färger | 16.7M (8-bit), CIE193171% |
| respons tid | 35 (Max.)(Tr+Td) |
| betraktningsvinkel | 85/85/85/85 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 6S2PWLEDWithout Driver |
| signalgränssnitt | MIPI (4 data lanes), 34 pins |
| inspänning | 1.8/5.0/-5.0V (Typ.)(IOVDD/VSP/VSN) |
| Ansökan | MPH |
