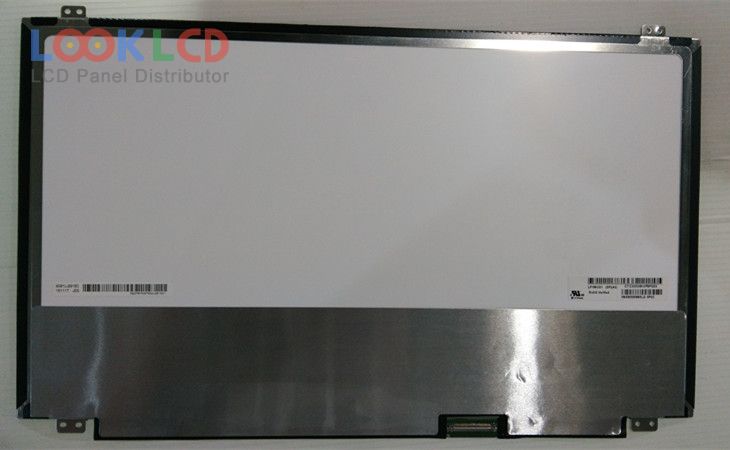

| Artikelnummer | LP156UD1-SPA2 |
| varumärke | LG Display |
| Storlek | 15.6 |
| Ansökan | NBPC |
| Upplösning | 3840×2160 |
| Sammansättning | LCM |
| Ljusstyrka | 300 |
| CR | 800:1 |
| Färger | 16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | eDP |
| panelmärke | LG Display |
| panelmodell | LP156UD1-SPA2 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.6 inch |
| upplösning | 3840RG(BW)×2160 , UHD |
| visningsläge | IPS, Normally Black, Transmissive |
| aktivt område | 344.448×193.752 mm |
| skissera | 359.5×223.8×2.9 mm |
| form stil | Slim (PCBA Flat, Depth ≤3.2mm) |
| yta | Glare (Haze 0%), Hard coating (3H) |
| ljusstyrka | 300 cd/m² (Typ.) |
| Kontrastförhållande | 800:1 (Typ.) |
| visa färger | 16.7M (8-bit), CIE193172% |
| respons tid | 25 (Typ.)(Tr+Td) |
| betraktningsvinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | eDP (4 Lanes), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
