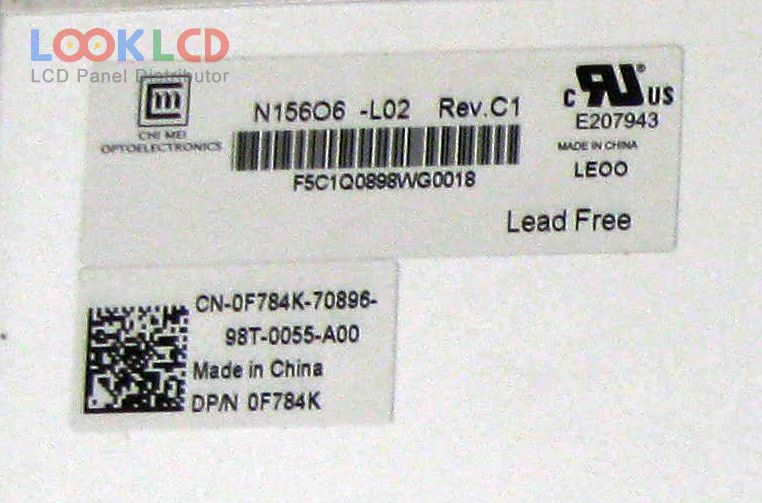

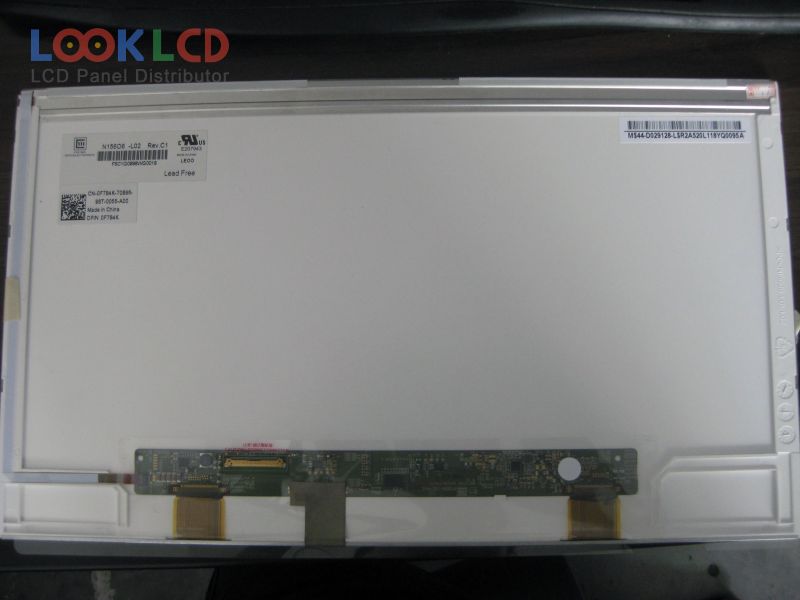

| Artikelnummer | N156O6-L02 |
| varumärke | Innolux |
| Storlek | 15.6 |
| Ansökan | NBPC |
| Upplösning | 1600×900 |
| Sammansättning | LCM |
| Ljusstyrka | 250 |
| CR | 650:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | CMO |
| panelmodell | N156O6-L02 10 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.6 inch |
| upplösning | 1600(RGB)×900 , HD+ |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 344.16×193.59 mm |
| skissera | 359.3×209.5×5.5 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Glare (Haze 0%), Hard coating (3H) |
| ljusstyrka | 250 cd/m² (Typ.) |
| Kontrastförhållande | 650:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193160% |
| respons tid | 3/7 (Typ.)(Tr/Td) |
| betraktningsvinkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS (2 ch, 6-bit), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
| G156XW01 V0 | AUO | 15.6 | 1366×768 |
| LP156WF6-SPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLG1 | LG Display | 15.6 | 1366×768 |
| LP156WH8-TLA2 | LG Display | 15.6 | 1366×768 |
| LTN156AT01-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT01-D02 | Samsung | 15.6 | 1366×768 |
| M156MWR1 R0 | IVO | 15.6 | 1366×768 |
| N156O6-L01 | Innolux | 15.6 | 1600×900 |
| N156O6-L02 | Innolux | 15.6 | 1600×900 |
| N156O6-L04 | Innolux | 15.6 | 1600×900 |
| B121EW01 V0 | AUO | 12.1 | 1280×800 |
| LP116WH6-SPA2 | LG Display | 11.6 | 1366×768 |
| LP150X09-B2K3 | LG Display | 15.0 | 1024×768 |
| LP156WH2-TLA1 | LG Display | 15.6 | 1366×768 |
| LP171WU1-TLA1 | LG Display | 17.1 | 1920×1200 |
| LQ154M1LW02 | SHARP | 15.4 | 1920×1200 |
| LTN133AT01-001 | Samsung | 13.3 | 1280×800 |
| LTN141W1-L02 | Samsung | 14.1 | 1280×800 |
| LTN154X3-L04 | Samsung | 15.4 | 1280×800 |
| N121IA-L02 | Innolux | 12.1 | 1280×800 |
