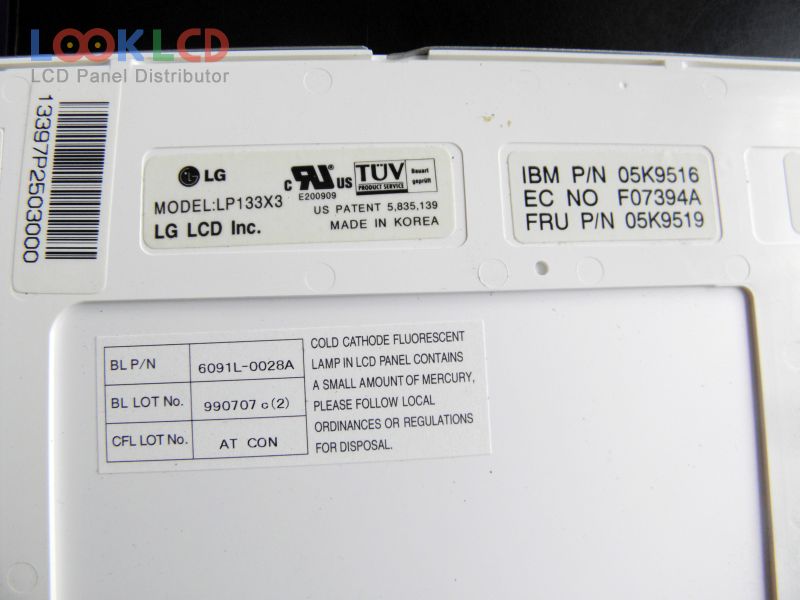

| Artikelnummer | LP133X3 |
| varumärke | LG Display |
| Storlek | 13.3 |
| Ansökan | NBPC |
| Upplösning | 1024×768 |
| Sammansättning | LCM |
| Ljusstyrka | 90 |
| CR | 100:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | LG Semicon |
| panelmodell | LP133X3 1 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 13.3 inch |
| upplösning | 1024(RGB)×768 , XGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 270.336×202.752 mm |
| skissera | 292×215×6.8 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Antiglare, Hard coating (3H) |
| ljusstyrka | 90 cd/m² (Typ.) |
| Kontrastförhållande | 100:1 (Typ.) |
| visa färger | 262K (6-bit) |
| respons tid | 30/50 (Typ.)(Tr/Td) |
| betraktningsvinkel | 40/40/10/30 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 1 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6-bit), 20 pins |
| inspänning | 5.0V (Typ.) |
| Ansökan | NBPC |
