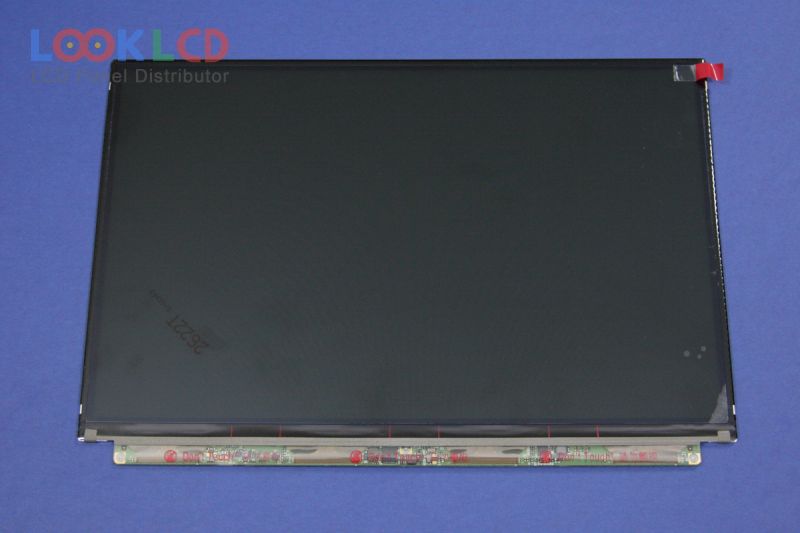

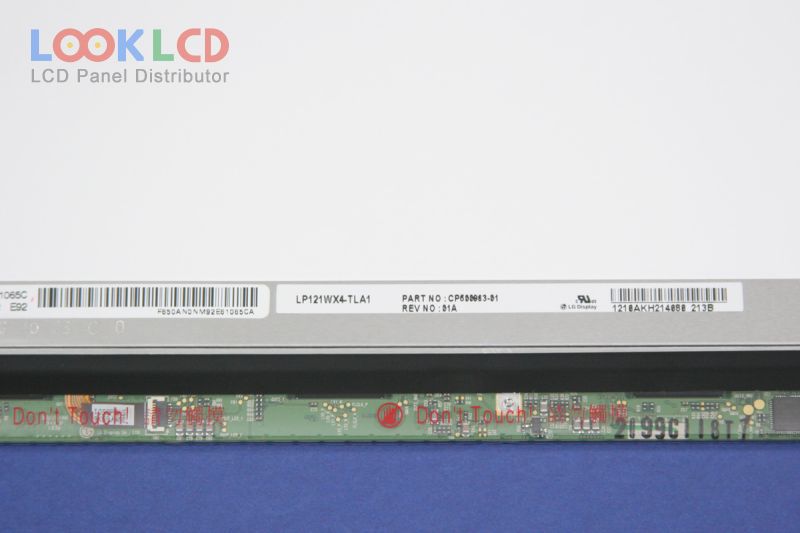

| Artikelnummer | LP121WX4-TLA1 |
| varumärke | LG Display |
| Storlek | 12.1 |
| Ansökan | NBPC |
| Upplösning | 1280×800 |
| Sammansättning | LCM |
| Ljusstyrka | 250 |
| CR | 250:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | LG Display |
| panelmodell | LP121WX4-TLA1 1 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 12.1 inch |
| upplösning | 1280(RGB)×800 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 259.594×162.24 mm |
| skissera | 270.6×187.5×3.45 mm |
| yta | Antiglare |
| ljusstyrka | 250 cd/m² (Typ.) |
| Kontrastförhållande | 250:1 (Min.) |
| visa färger | 262K (6-bit) |
| respons tid | 25 (Typ.)(Tr+Td) |
| betraktningsvinkel | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 6 stringsWLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS (1 ch, 6-bit), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
