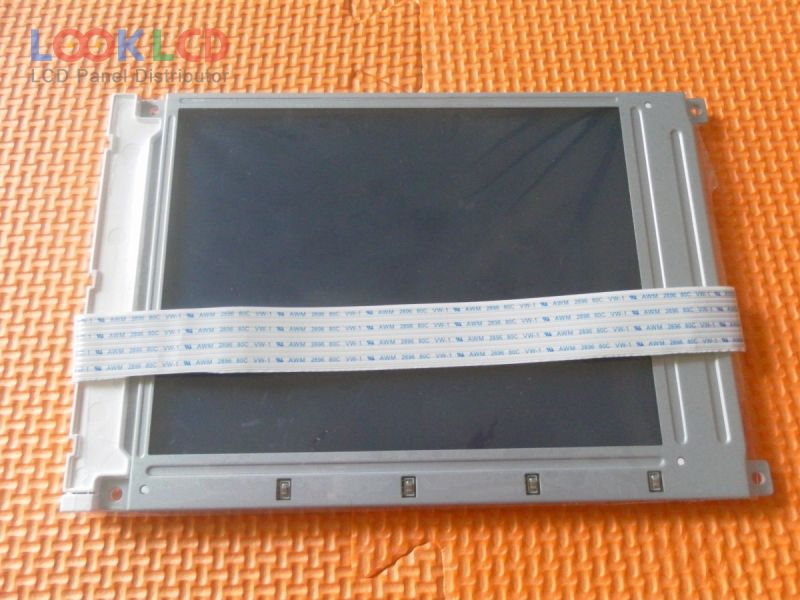

| Artikelnummer | LM057QB1T073 |
| varumärke | SHARP |
| Storlek | 5.7 |
| Ansökan | IA |
| Upplösning | 320×240 |
| Sammansättning | LCM |
| Ljusstyrka | 150 |
| CR | 6:1 |
| Färger | Monochrome |
| Bakgrundsbelysning | WLED |
| Gränssnitt | Parallel Data |
| panelmärke | SHARP |
| panelmodell | LM057QB1T073 |
| paneltyp | STN-LCD , LCM |
| panelstorlek | 5.7 inch |
| upplösning | 320×240 , QVGA |
| visningsläge | STN, Blue mode (Negative), Transmissive |
| aktivt område | 115.17×86.37 mm |
| skissera | 166×109×7.5 mm |
| yta | |
| ljusstyrka | 150 cd/m² (Typ.) |
| Kontrastförhållande | 6:1 (Typ.) |
| visa färger | Monochrome |
| respons tid | 190/210 (Typ.)(Tr/Td) |
| betraktningsvinkel | 40/40/25/40 (Typ.)(CR≥2)(L/R/U/D) |
| frekvens | 80Hz |
| lamptyp | 1S6PWLEDEmbedded (LED Driver) |
| signalgränssnitt | Parallel Data (4-bit), 12 pins |
| inspänning | 5.0V (Typ.) |
| Ansökan | IA |
