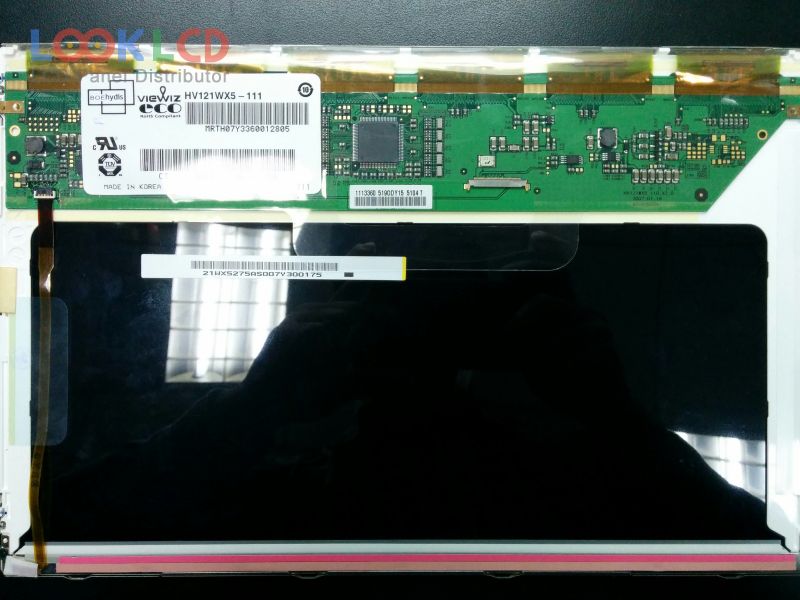

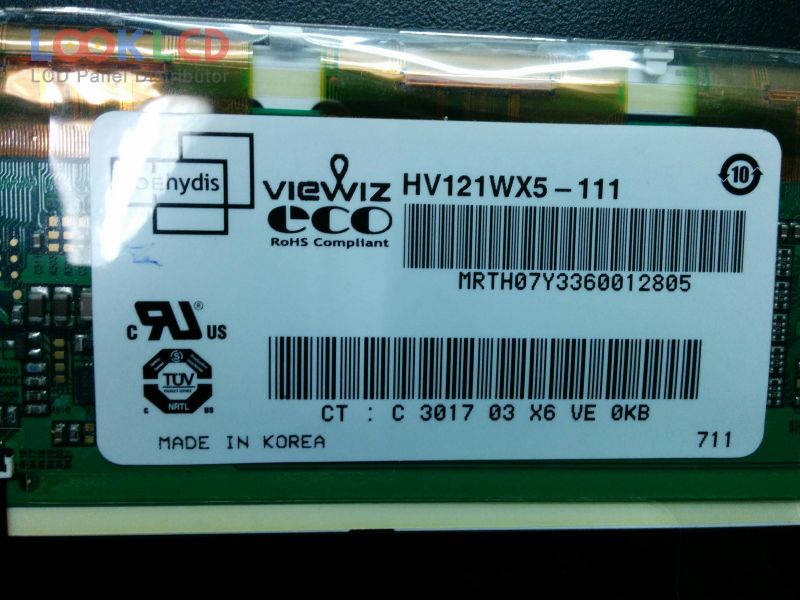

| Artikelnummer | HV121WX5-111 |
| varumärke | HYDIS |
| Storlek | 12.1 |
| Ansökan | PAD |
| Upplösning | 1280×800 |
| Sammansättning | LCM |
| Ljusstyrka | 220 |
| CR | 500:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | BOE HYDIS |
| panelmodell | HV121WX5-111 3 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 12.1 inch |
| upplösning | 1280(RGB)×800 , WXGA |
| visningsläge | AFFS, Normally Black, Transmissive |
| aktivt område | 261.12×163.2 mm |
| skissera | 276.8×180×6.8 mm |
| yta | Antireflection |
| ljusstyrka | 220 cd/m² (Typ.) |
| Kontrastförhållande | 500:1 (Typ.) |
| visa färger | 262K (6-bit) |
| respons tid | 30 (Typ.)(Tr+Td) |
| betraktningsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 12S4PWLEDEmbedded (LED Driver) |

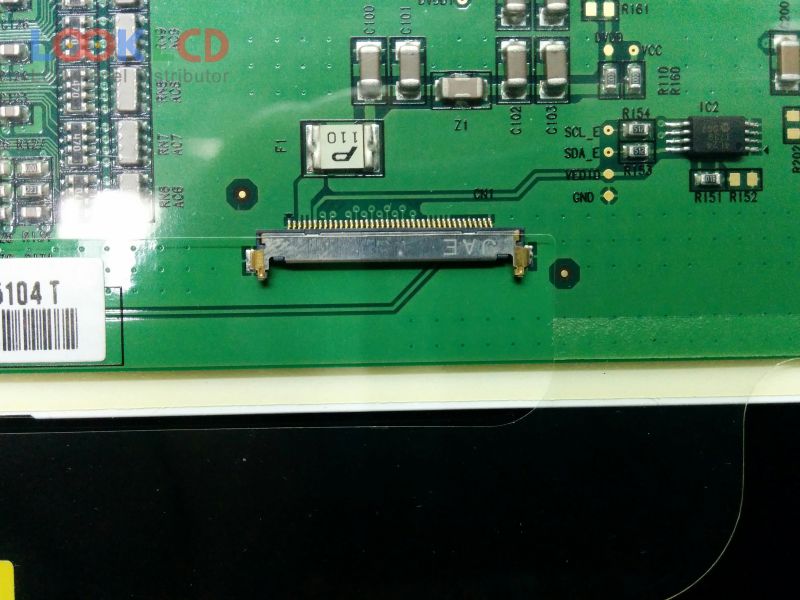

| signalgränssnitt | LVDS (1 ch, 6-bit), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | PAD |
