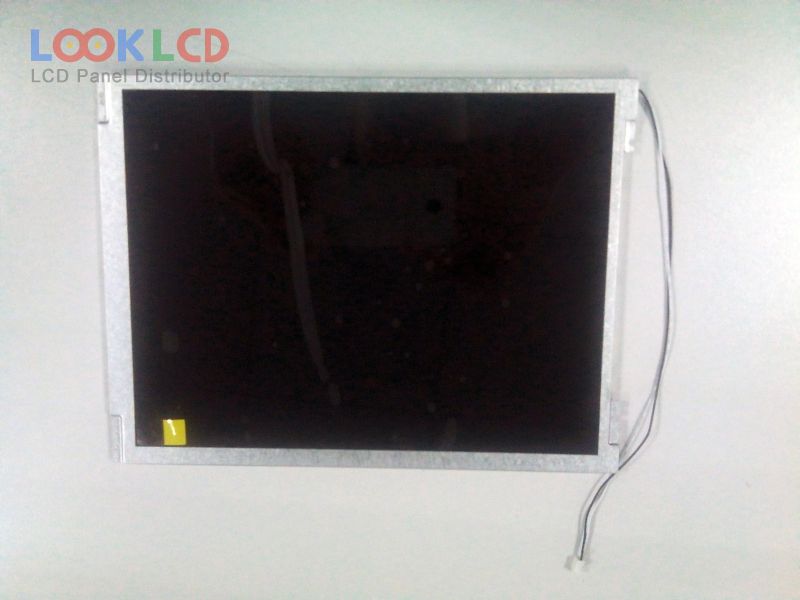

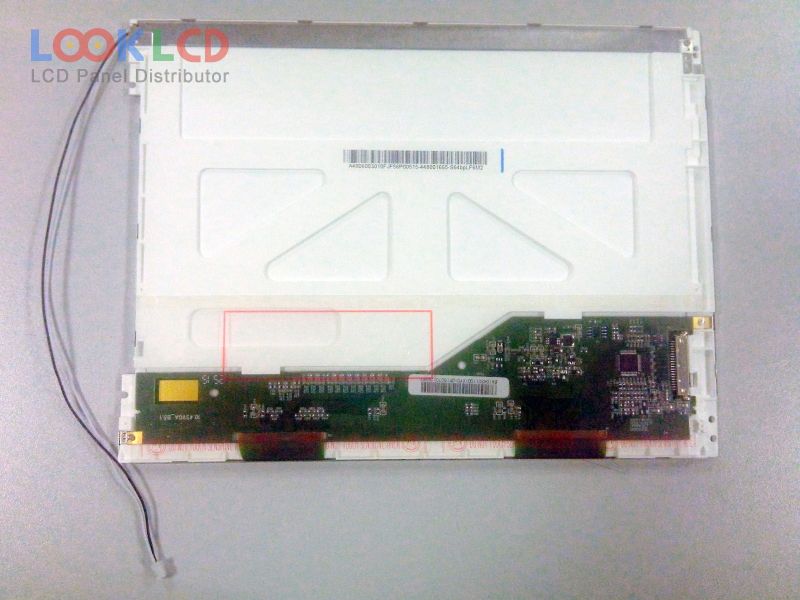

| Artikelnummer | DLC1040ABG-3 |
| varumärke | Other |
| Storlek | 10.4 |
| Ansökan | IA |
| Upplösning | 800×600 |
| Sammansättning | LCM |
| Ljusstyrka | 1000 |
| CR | 800:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | DLC |
| panelmodell | DLC1040ABG-3 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 10.4 inch |
| upplösning | 800(RGB)×600 , SVGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 211.2×158.4 mm |
| skissera | 236×176.9×5.9 mm |
| yta | |
| ljusstyrka | 1000 cd/m² (Typ.) |
| Kontrastförhållande | 800:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193153% |
| respons tid | 30 (Typ.)(Tr+Td) |
| betraktningsvinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDWithout Driver |

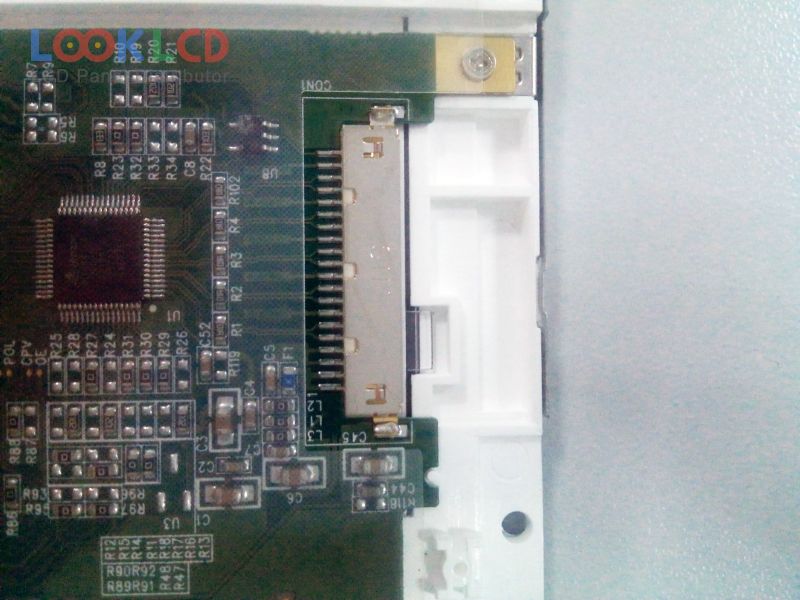

| signalgränssnitt | LVDS (1 ch, 6-bit), 20 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | IA |
