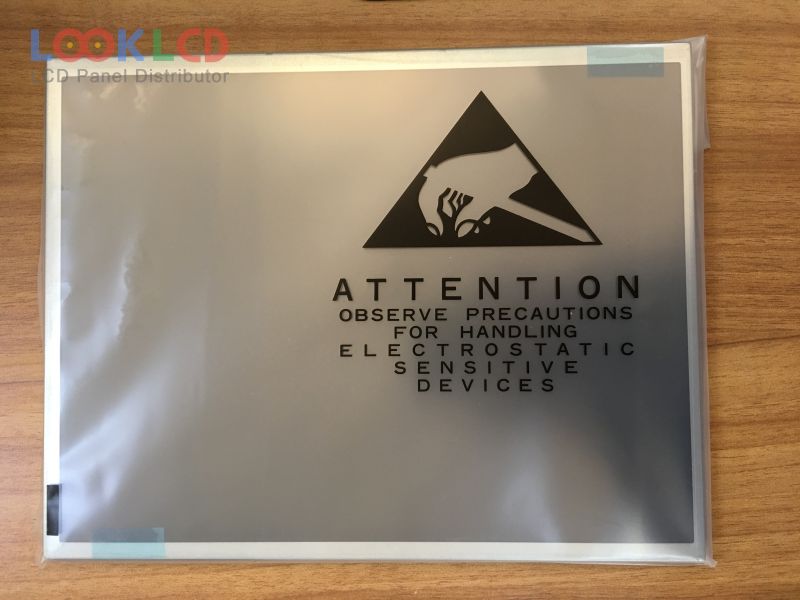

| Artikelnummer | AT104XH11 |
| varumärke | Mitsubishi |
| Storlek | 10.4 |
| Ansökan | IA |
| Upplösning | 1024×768 |
| Sammansättning | LCM |
| Ljusstyrka | 1200 |
| CR | 700:1 |
| Färger | 262K/16.7M |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | Mitsubishi |
| panelmodell | AT104XH11 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 10.4 inch |
| upplösning | 1024(RGB)×768 , XGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 210.4×157.8 mm |
| skissera | 230.2×180.2 mm |
| yta | Antiglare, Hard coating (3H) |
| ljusstyrka | 1200 cd/m² (Typ.) |
| Kontrastförhållande | 700:1 (Typ.) |
| visa färger | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| respons tid | 4/12 (Typ.)(Tr/Td) |
| betraktningsvinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | WLEDWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6/8-bit), 20 pins |
| inspänning | 3.3V (Typ.) |
