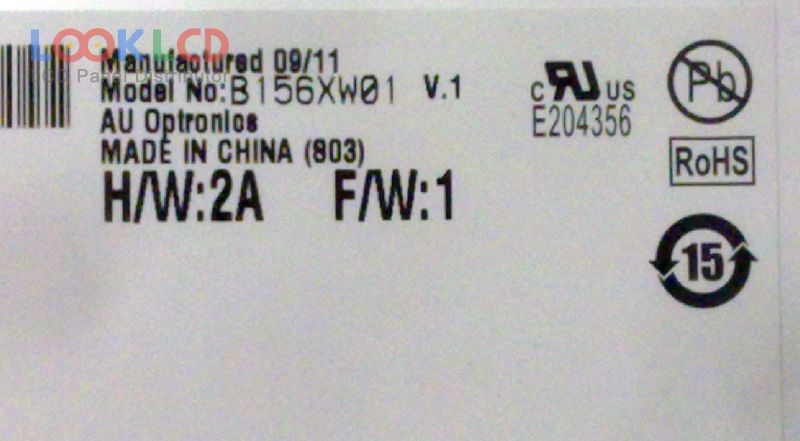

| Artikelnummer | B156XW01 V1 |
| varumärke | AUO |
| Storlek | 15.6 |
| Ansökan | NBPC |
| Upplösning | 1366×768 |
| Sammansättning | LCM |
| Ljusstyrka | 220 |
| CR | 400:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | AUO |
| panelmodell | B156XW01 V1 11 Compatible model |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.6 inch |
| upplösning | 1366(RGB)×768 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 344.232×193.536 mm |
| skissera | 359.3×209.5×6.4 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Antiglare |
| ljusstyrka | 220 cd/m² (Typ.) |
| Kontrastförhållande | 400:1 (Typ.) |
| visa färger | 262K (6-bit), CIE193160% |
| respons tid | 8 (Typ.)(Tr+Td) |
| betraktningsvinkel | 45/45/15/35 (Min.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 1 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6-bit), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
