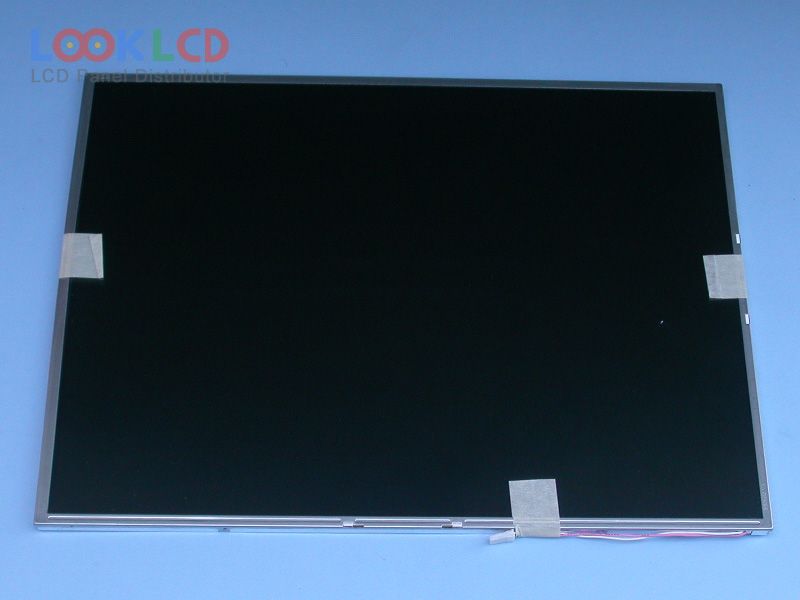

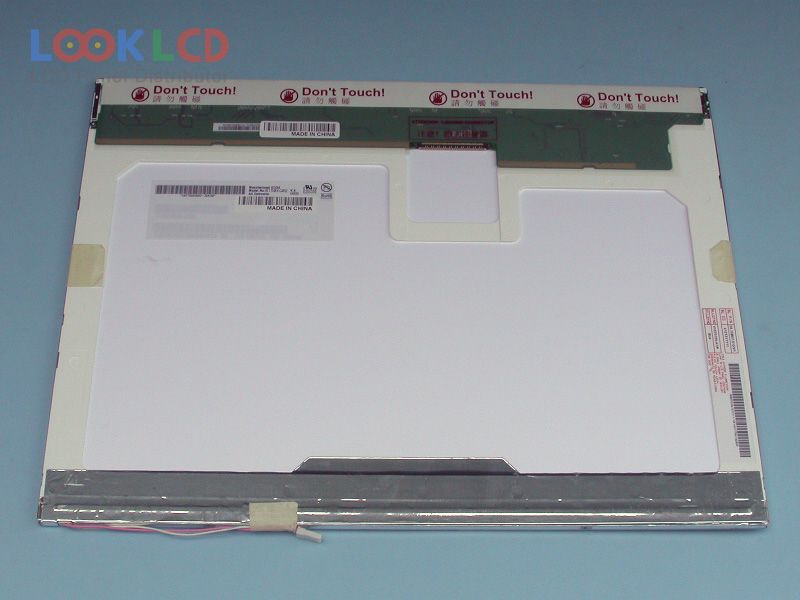

| Artikelnummer | B150XG02 V4 |
| varumärke | AUO |
| Storlek | 15.0 |
| Ansökan | NBPC |
| Upplösning | 1024×768 |
| Sammansättning | LCM |
| Ljusstyrka | 170 |
| CR | 300:1 |
| Färger | 262K |
| Bakgrundsbelysning | CCFL |
| Gränssnitt | LVDS |
| panelmärke | AUO |
| panelmodell | B150XG02 V4 |
| paneltyp | a-Si TFT-LCD , LCM |
| panelstorlek | 15.0 inch |
| upplösning | 1024(RGB)×768 , XGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 304.128×228.096 mm |
| skissera | 317.3×242×6.4 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Antiglare (Haze 25%), Hard coating (3H), Reflection 4.3% (Typ.) |
| ljusstyrka | 170 cd/m² (Typ.) |
| Kontrastförhållande | 300:1 (Typ.) |
| visa färger | 262K (6-bit) |
| respons tid | 16/9 (Typ.)(Tr/Td) |
| betraktningsvinkel | 40/40/10/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvens | 60Hz |
| lamptyp | 1 pcsCCFLWithout Driver |
| signalgränssnitt | LVDS (1 ch, 6-bit), 30 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
