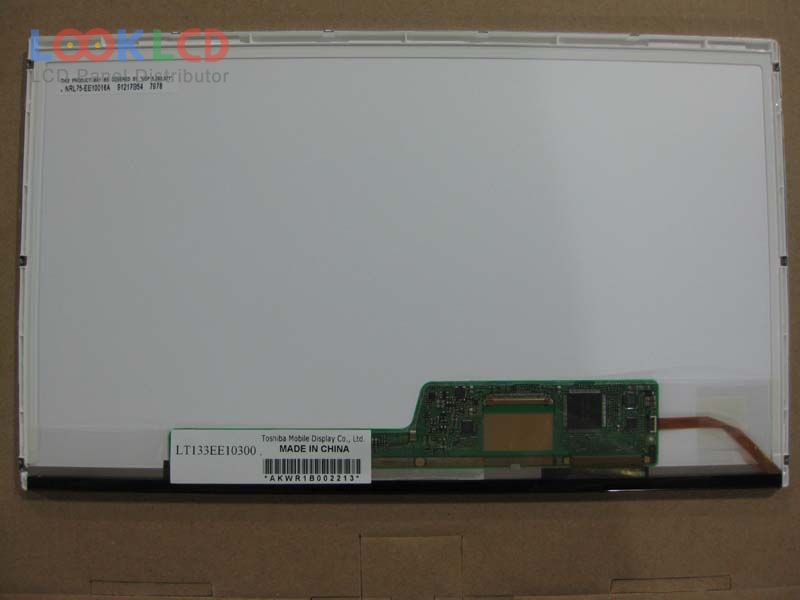

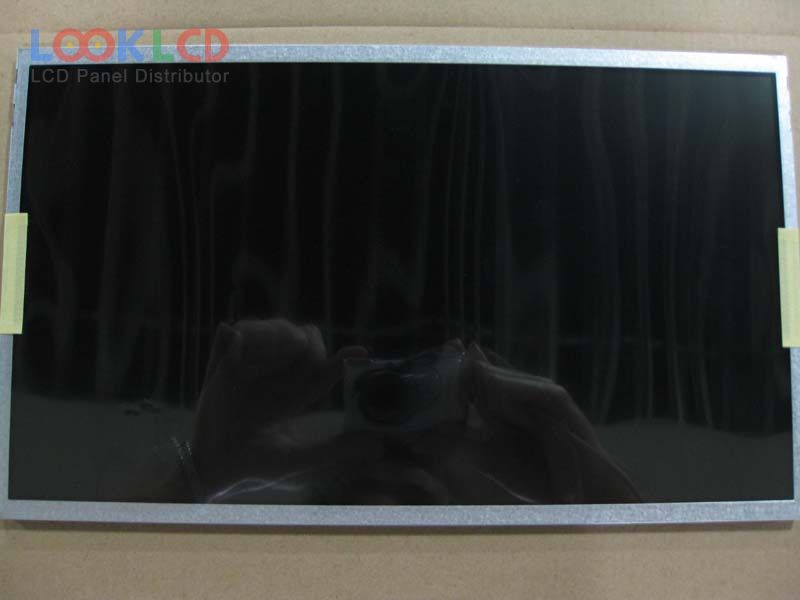

| Artikelnummer | LT133EE10300 |
| varumärke | TOSHIBA |
| Storlek | 13.3 |
| Ansökan | NBPC |
| Upplösning | 1366×768 |
| Sammansättning | LCM |
| Ljusstyrka | 200 |
| CR | 600:1 |
| Färger | 262K |
| Bakgrundsbelysning | WLED |
| Gränssnitt | LVDS |
| panelmärke | Toshiba Mobile Display |
| panelmodell | LT133EE10300 2 Compatible model |
| paneltyp | LTPS TFT-LCD , LCM |
| panelstorlek | 13.3 inch |
| upplösning | 1366(RGB)×768 , WXGA |
| visningsläge | TN, Normally White, Transmissive |
| aktivt område | 293.42×164.97 mm |
| skissera | 307.6×183.1×5.2 mm |
| form stil | Wedge (PCBA Bent, Depth ≥5.2mm) |
| yta | Glare (Haze 0%), Hard coating |
| ljusstyrka | 200 cd/m² (Typ.) |
| Kontrastförhållande | 600:1 (Typ.) |
| visa färger | 262K (6-bit) |
| respons tid | 16 (Typ.)(Tr+Td) |
| betraktningsvinkel | |
| frekvens | 60Hz |
| lamptyp | WLEDEmbedded (LED Driver) |
| signalgränssnitt | LVDS (1 ch, 6-bit), 40 pins |
| inspänning | 3.3V (Typ.) |
| Ansökan | NBPC |
